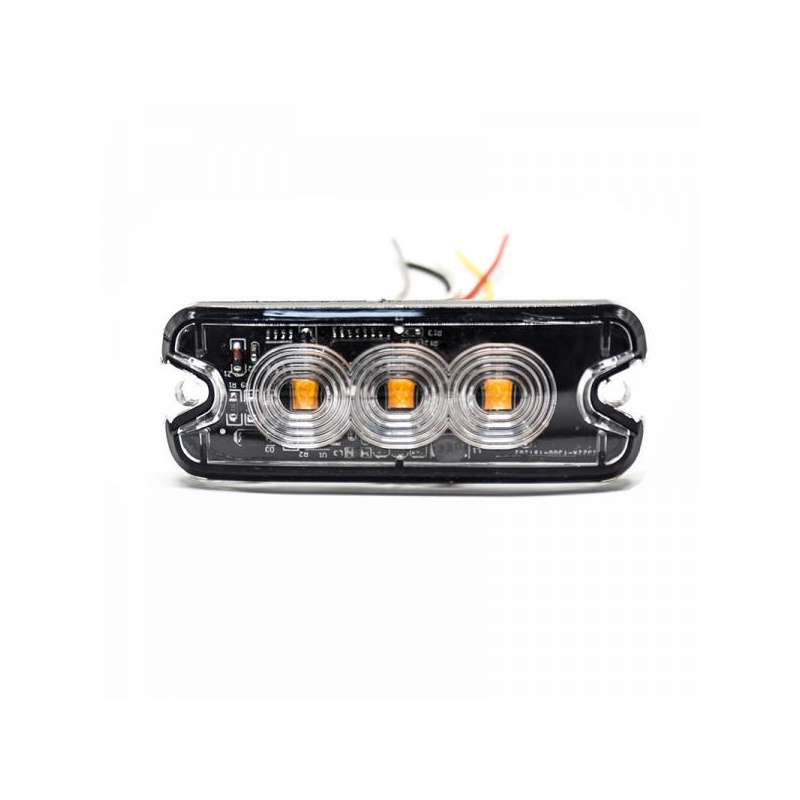

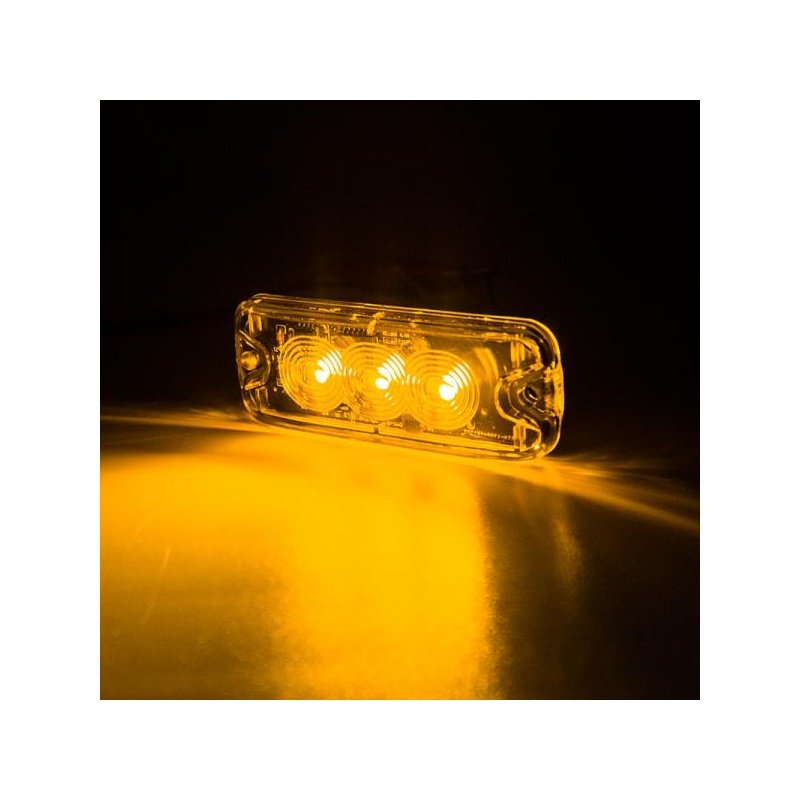

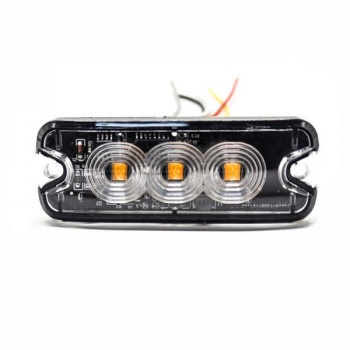

3xLED Surface Mount Light Head, 12-24V, amber

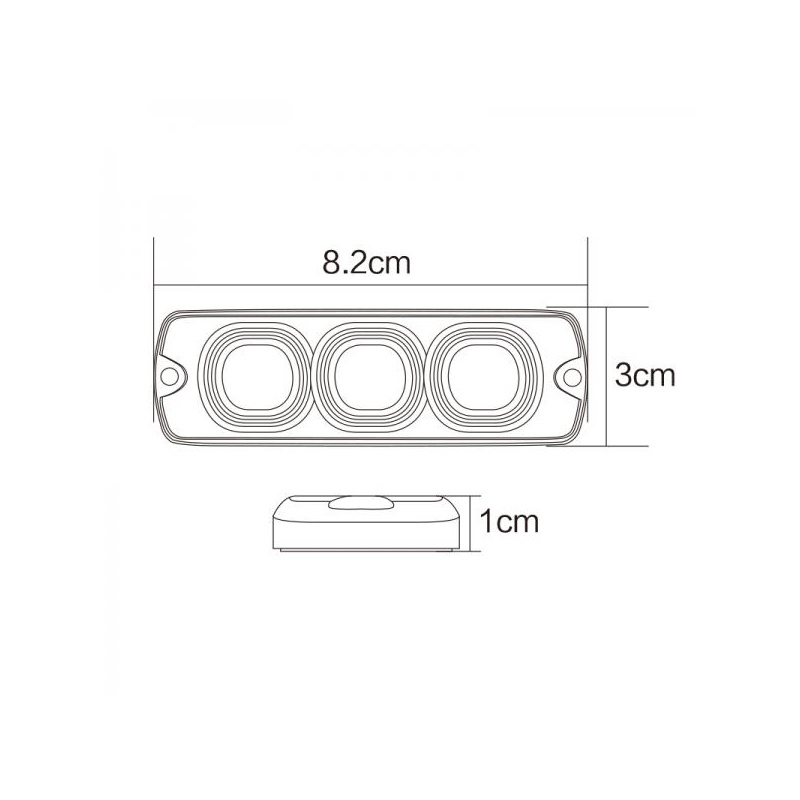

90x32x20mm
amber 3xLED
12-24V
9 different flashing alternatives with memory function
several flashers can be synchronized together
IP67
ECE R65, ECE R10

4x2W LED
amber
clear lens
12V, 24V
-40°C~ 60°C
CE,ISO900, R10
Flashing patterns: 10
95x27x8mm

99x35x10mm
12-24V
superslim 10mm
6xLED, amber
16 different flashing alternatives with memory function
several flashers can be synchronized together
easy to install
ECE R65 (XA1), ECE R10-05 (EMC)

128x38x35mm
12-24V
Powerful 180° illuminating LED light head.
9xpowerLED, amber light
clear lens
16-flash modes
last programmed flash memory can be synchronized together
water and vibration resistant construction
Max.power 1,16A/12VDC 0,58A/24VDC
hole distance 120mm
ECE R65 (XA1) ECE R10
IP68

voltage is 12V/24V
4x LEDs 115W
3 warning flashes
wire: 200 mm
dimensions: 98x31x6mm
according to standards such as ECE R10, ECE R65

The OPTIBEAM FLEX LM6 warning light offers completely new possibilities in terms of installation location. The light, which can be installed on surfaces curved up to 120 degrees, can be installed, for example, on the support leg of a crane, on the corners of a vehicle, or on other surfaces where a light with a straight and rigid body could not be used before. The design is aerodynamic and takes into account today's demands in terms of functions and attachments, including interference protection CISPR CLASS 3 (no radio interference) and ECE R65 class 2 (allowed in traffic both day and night), as well as IP67 protection class against water and dust. In addition, the FLEX LM6 has dual memory with separate wiring to quickly switch between steady light and warning light modes.

- Dimensions: 126.8 x 30.2 x 10.7 mm
- Bends up to 120° to fit a curved mounting surface.
- made of Dow Silastic silicone
- aerodynamic: minimal wind resistance
- screw fastening with glue, screw covers
- white glass.
- 6 High-Power LEDs
- 20 flashing modes, double memory, synchronisable: up to 20 lights
- short circuit protection, weatherproof, vibration resistant.
- working temperature: -40° ... +65°C
- Certificates: ECE R65 Class 2, ECE 10, SAE J595 Cl.1, SAE J845 Cl.1, CISPR25 Cl.3, CA13
- Cable length: 300 mm
- Voltage: 12/24V
