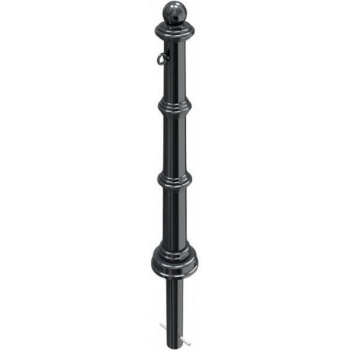

Aluminium ornamental bollard

Aluminium ornamental bollard, matt black.

- coated matt black
- approx. 900mm above ground
- cast aluminium with steel rod core
- fixing methods: stationary, for casting in concrete; removable, with triangular locking mechanism

Ornamental bollard, Ø60mm

5 different bollards in selection:
1. Stationary, for casting in concrete, with ground anchor, total length: approx. 1300mm. 5kg
2. Stationary, to be fixed by plugs, with base plate 100 x 150mm. 4kg
3. Removable, with triangular locking mechanism, self-engaging lock, with hot-dip galvanized ground socket part-no. 460.40: approx. 400 mm below ground. 7kg
4. Foldable, with triangular locking mechanism, self-engaging lock, to be fixed by plugs, with base plate 100 x 150 mm. 6kg
5. Foldable, with triangular locking mechanism, self-engaging lock, for casting in concrete, with hot-dip galvanized ground socket part-no. 470.60, approx. 400 mm below ground

- approx. 950mm above ground
- hot-dip galvanized and coated colour RAL 7016

Ornamental bollard, Ø76mm

8 different bollards in selection:
1. Stationary, for casting in concrete, with ground anchor, total length: approx. 1300mm. 6,5kg
2. Stationary, to be fixed by plugs, with base plate 100 x 150mm. 5,5kg
3. Removable, with triangular locking mechanism, self-engaging lock, with hot-dip galvanized ground socket part-no. 476.40: approx. 400 mm below ground. 11,5kg
4. Removable, with profile cylinder lock (three keys incl.) self-engaging lock, with hot-dip galvanized ground socket part-no. 476.40: approx. 400 mm below ground. 11,5kg
5. Foldable, with triangular locking mechanism, self-engaging lock, to be fixed by plugs, with base plate 100 x 150 mm. 7kg
6. Foldable, with cylinder lock (three keys incl.) self-engaging lock, with base plate 100 x 150mm. 9kg
7. Foldable, with triangular locking mechanism, self-engaging lock, for casting in concrete, with hot-dip galvanized ground socket part-no. 470.60, approx. 400 mm below ground. 9,5kg
8. Foldable, with cylinder lock (three keys incl.) self-engaging lock for casting in concrete, with hot-dip galvanized ground socket part-no. 470.60, approx. 400 mm below ground. 11,5kg

- approx. 950mm above ground
- hot-dip galvanized and coated RAL 7016

Ornamental bollard with hemispherical head Ø102mm

3 different bollards in selection:
1. Stationary, for casting in concrete, with ground anchor, total length: approx. 1300mm.
2. Removable, with triangular locking mechanism, self-engaging lock, with hot-dip galvanized ground socket part-no. 470.10: approx. 500 mm below ground.
3. Removable, with profile cylinder lock, three keys incl. self-engaging lock, with hot-dip galvanized ground socket part-no. 470.10: approx. 500 mm below ground.

- approx. 950mm above ground
- with hemispherical head
- hot-dip galvanized and coated RAL 7016

DIMENSIONS
height: 110 cm
diameter: 7,6 cm
weigth: 13 kg

MATERIALS
varnished steel and varnished polymer composite

INSTALLATION
The bollard is installed by setting anchoring pipes in the concrete

COLOR CHOICE: dark grey, black

DIMENSIONS
height: 90 cm
diameter: 7,6 cm
weigth: 11.5 kg

MATERIALS
varnished steel and varnished polymer composite

INSTALLATION
The bollard is installed by setting anchoring pipes in the concrete

COLOR CHOICE: dark grey, black
