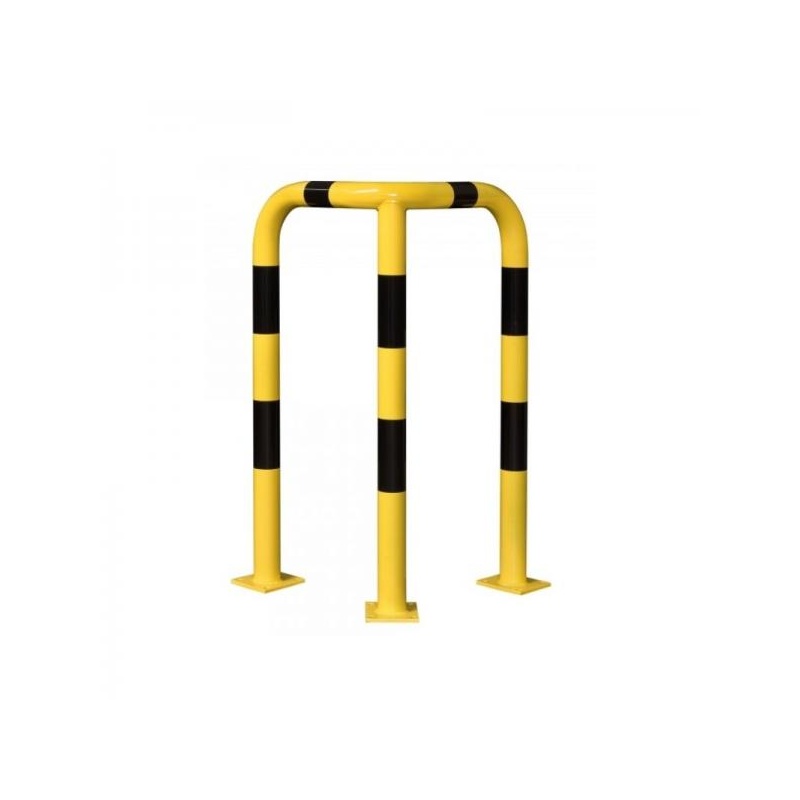

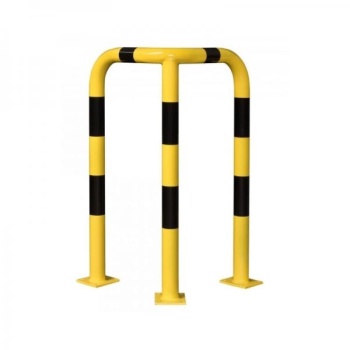

Corner protection guard Ø76 L500x500

The pipe protection helps to protect the pipes on the wall from damage caused by collisions with vehicles. Used to protect pipes in car parks, warehouses and production buildings, as well as in the external facades of houses.

- metal pipe Ø48 mm, wall thickness 2 mm
- internal dimension: 250x275 mm
- external dimension: 350x300 mm
- height variations: 1000 and 1500 mm
- base: 150x50 mm, thickness 5 mm
- finish: yellow, galvanized and black stickers
- fixed to the wall with 8 anchors: with concrete anchors Ø12x120mm or with screw dowels Ø8x100mm
- suitable for both indoor and outdoor conditions

Security post parameters:
- diameter Ø159 mm (wall thickness 5 mm)
- height: 1000 mm
- sole 200x200x10 mm.
- finish: painted (yellow)

On request, we can add reflective stickers to this product

If you want a protective bollard with other dimensions or colors, please contact gosafe@inten.ee!

Height: 1000mm
Width: 300mm
Depth: 300mm
Tube diameter: 48.3mm, wall thickness: 3.2mm
Powder coated yellow RAL1003
If you wish, we will make the product in the dimensions that suit you. Ask for a quote!

– metal tube Ø48.3 mm, wall thickness 3.2 mm
– height: 500mm
– width: 500mm
– finish: powder paint yellow RAL1003

If you wish, we will make the product in the dimensions that suit you. Ask for a quote!

Touch-up paint for metal guardrails with 3 brushes

The touch-up painting is straightforward and can be done without dismantling the pipe guard.

Spot painting is only performed on damaged areas where the paint coating is compromised and the metal surface is exposed to the environment.

Color: RAL1003
Quantity: 0.225 liters
Net weight: 0.3kg
The set includes 3 brushes.
