Directional lighting device, single arrow, class L8H, 8 elements 12-24v

High-Intensity LED Directional Arrow Bar
Voltage 10V-30V DC
1W LED light, 4 pcs/module, 16 modules, total 64LEDs
with controller
Led Color: amber
Lens Color: Transparent
Flash patterns: 3 Patterns
Material PC Lens & Aluminum Dome
Operating Temperature: -40 to 55°C
Cable: 2.5 meter
Product Length: 1215mm
Waterproof & Dustproof

- 13x D200 LED, L8H (EN12352)
- 4 modes: OFF, right arrow, left arrow and cross
- also includes a control panel with a 15m cable
- 12 / 24V
- Dimensions: 900 x 900 x 105 mm

Dimensions: 673x24x38mm
Voltage: 12-24V
Description: Yellow light, different modes, 6 modules
Description: aluminum housing, bolt mounting (T-bolt)
Power consumption: 2.9A / 12.8VDC, 1.5A / 24VDC
Control panel 1603-140710, mounting kit 1603-140733, 1603-140734

Dimensions: 888x24x38mm
Voltage: 12-24V
Description: Yellow light, different modes, 8 modules
Description: aluminum housing, bolt mounting (T-bolt)
Power consumption: 3.8A / 12.8VDC, 1.9A / 24VDC
Control Panel 1603-140710
Mounting kit 1603-140733, 1603-140734

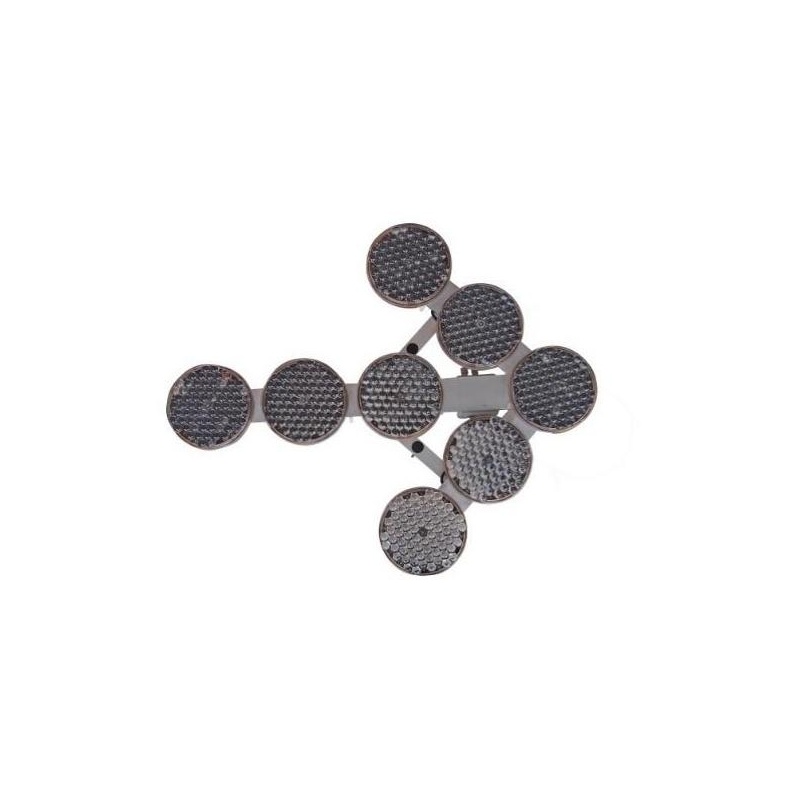

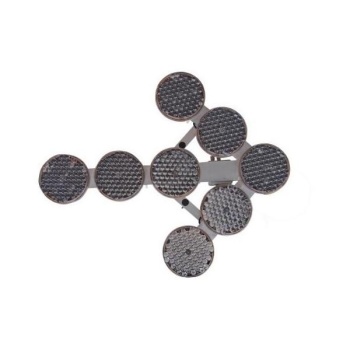

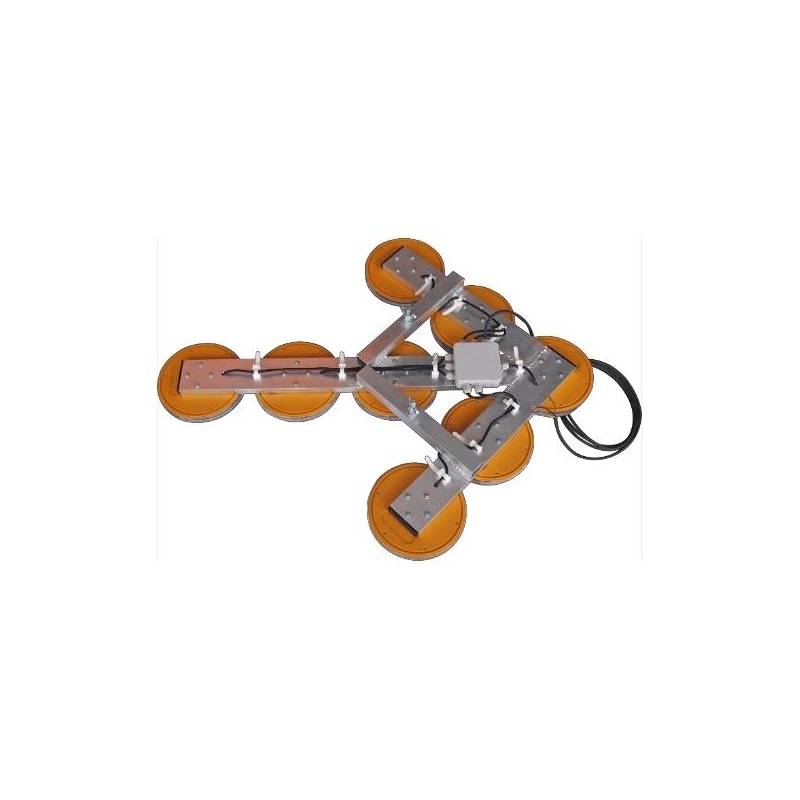

- Consists of 8xØ210 LEDs
- Color: yellow
- IP56
- about 50,000 working hours
- Light class: L8H
- Light source: LED 1.6kcd, 12V, lens diameter 210 mm x 85 mm


- Frame: aluminum
- Size: 860x860 mm; 190 mm
- Panel: Reversible single sided arrow

Weight: 13 kg

The L15 arrow is made of 15 lamps with a lampshade diameter of Ø200mm
Power supply: 12V / 24V
Active diffuser diameter: ϕ 200 mm
Color of the lampshade: orange
Light source: LED insert with increased luminous intensity with a special optical system meeting the parameters of the L8H lamp class (luminous intensity 2000 cd) according to the PN.EN 12352: 2010 standard
Average daily current consumption of one lamp: 0.4A (12V) or 0.2A (24V)
Lamp lighting type: pulsating light
Display modes: left arrow, right arrow, cross, zero
Battery discharge indication: acoustic and optical signal
Twilight light intensity adjustment: day 100% / night 50%
Dimensions: 1060x1060 [mm], 15kg
Construction: steel, galvanized
