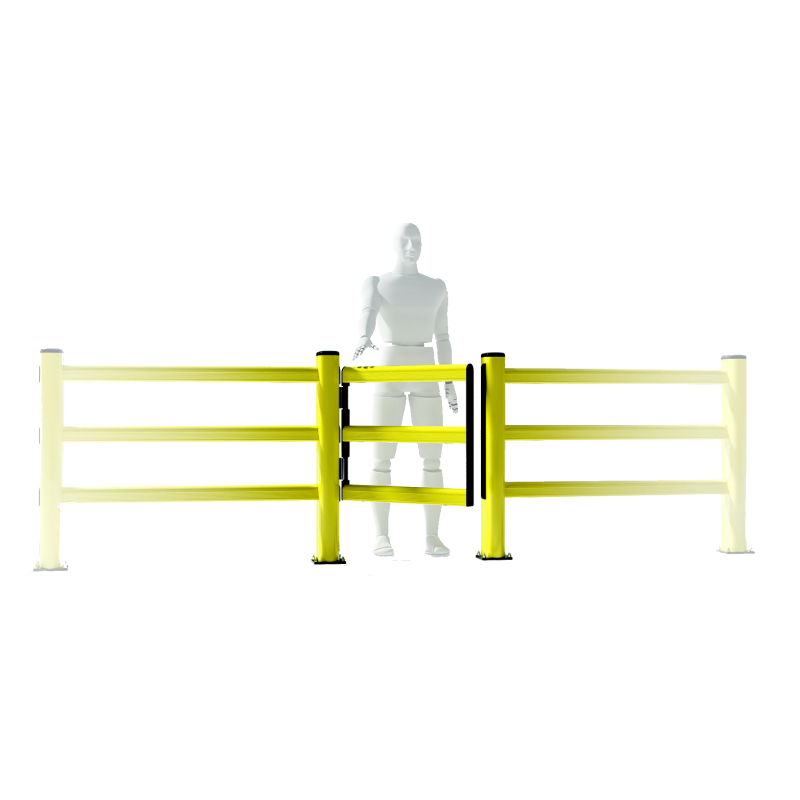

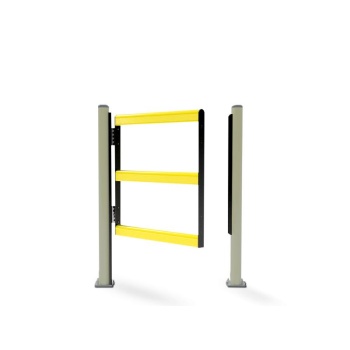

Door Pedestrian Ø90 L600 h1150 mm

Self-closing foot gate

– material: REFLEX (technopolymer)
– color: yellow RAL 1018, black RAL 9005
– impact resistance: 2000J
– dimensions: ø150 (L) 1100 x (H) 1150 mm
– environment: -10 ºC to 50 ºC

The price does not include support posts!

PEDESTRIAN SAFETY BARRIERS
The barrier for the segregation and safeguard of pedestrians in areas where heavy loads are handled. Height designed for the optimal protection of pedestrians. The barriers can be moved, reused and adapted to other areas requiring protection or for new needs after installation. The high-visibility, scratch-resistant color makes it easy to identify pedestrian areas, limiting the risk of collision. Flexible protective barrier complete with corner solutions which can also be combined with pedestrian and truck gates. 2000 mm standard modules with continuous fixing according to customer requirements. Fixing accessories included.

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- impact resistance: 8900 J
- dimensions: Ø150 (H) 1150 mm
- minimal order is 2 meters
- temperature resistance: −10 ºC to 60 ºC
- sales unit: linm

Innovative protective barrier for areas where heavy loads are handled. First barrier in the world with a lower rail height that can be adjusted on-site according to the most critical areas to be protected and the type of trucks and forklifts used by the end user. Thanks to the robust external connection systems, the barrier is easy to assemble and the post better supports the entire structure. Solution suitable for heavy impacts at a low height that also offers protection to pedestrians thanks to the handrail at human height.
– color: yellow RAL 1018, black RAL 9005
– impact tolerance : 8700 J
– dimension: Ø150 (H)1100 mm
– minimum order: 2 meters
– enviroment: −10 ºC kuni 60 ºC
– sales unit: linm

GRAVITY-CLOSING SAFETY GATES
The most efficient and durable way to protect people against accidental falls through guardrail openings.

• Proven design successfully used over 38 years
• Maintenance free
• Service life > 30 years
• TÜV tested, EN ISO 14122-3

DESIGN
• Gate automatically closes due to gravity
• Rises when opened; Returns closed when released
• Design does not depend on springs, cams, bearings, or the operator
• Gate has a horizontal swing, not a vertical drop
• Available in 4 standard sizes: 560, 690, 820, 950 mm

Suitable for loads as follows

Height: 2200 mm
Choice of widths: 1200, 1600, 2000 and 2600 mm*
Depth: 1400 mm
Installation space dimensions

Height: 2528 mm
Width: 1600, 2000, 2400 and 3000 mm
Depth Fixed supports: 855 mm
Pivoting component: 1679 mm
Turning radius: 2218 mm (measured from the floor edge)
* These widths take into account the space needed to maneuver on both sides.

Standard Colour, yellow, RAL 1028.
The VARIOGATE® has a TUV-Type-approval.

New pedestrian safety barrier suitable for areas where heavy loads are handled. The barrier has a double profile which is highly flexible and more resistant to shocks. The front fixing of Bflex profile on the vertical column ensures the maximum protection both over the entire lenght of the guardrail and on its external corners. 2000 mm modules with continuous fixing according to customer requirements. Fixing accessories and shock absorber pad included.

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- dimensions of the bar: (L) 80 mm (K) 300 mm
- barrier height: H 1100 mm
- dimensions of the base plate: 180 x 160 x 10 mm
- impact resistance: 7900 J
- environment: −10 ºC to 50 ºC
- fixed to the floor with M12 anchors (included) and chemical glue
- sale unit: linm
