Flexible rack protection S 600

For protection of support beams and posts with dimensions 400x400mm

Material: REFLEX (technopolymer)
Color: yellow RAL 1018, black RAL 9005
Impact resistance: 6300 J
Dimensions: 740 × 740 × 1150 mm
Environment: −10 ºC to 60 ºC

100mm of free space must be taken into account between the column protection and the column during installation! (exact drawing in the installation instructions file!)

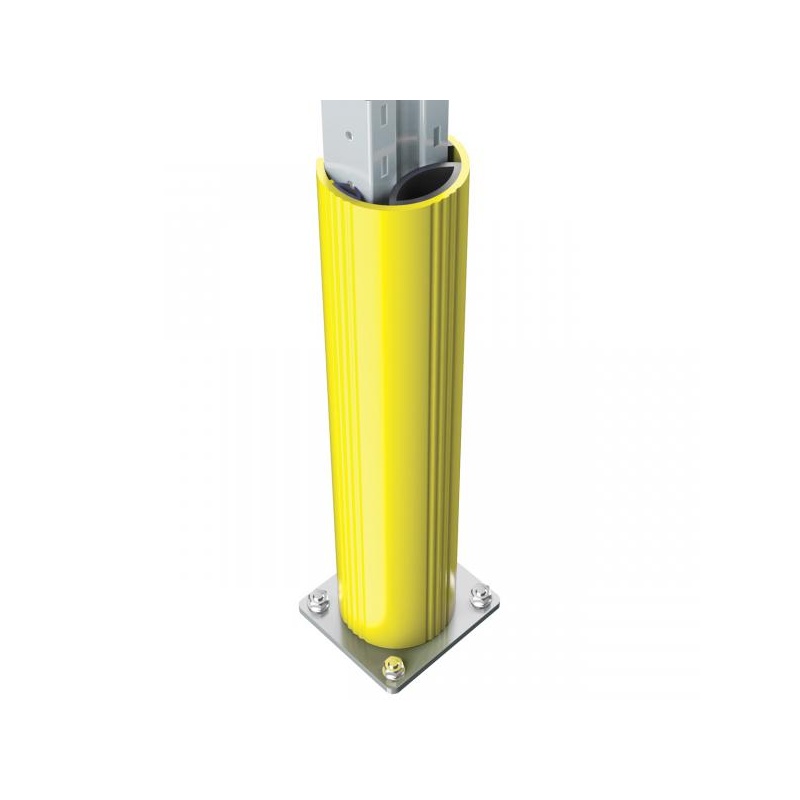

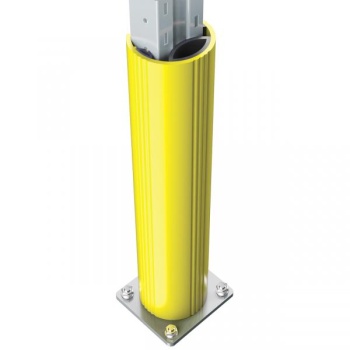

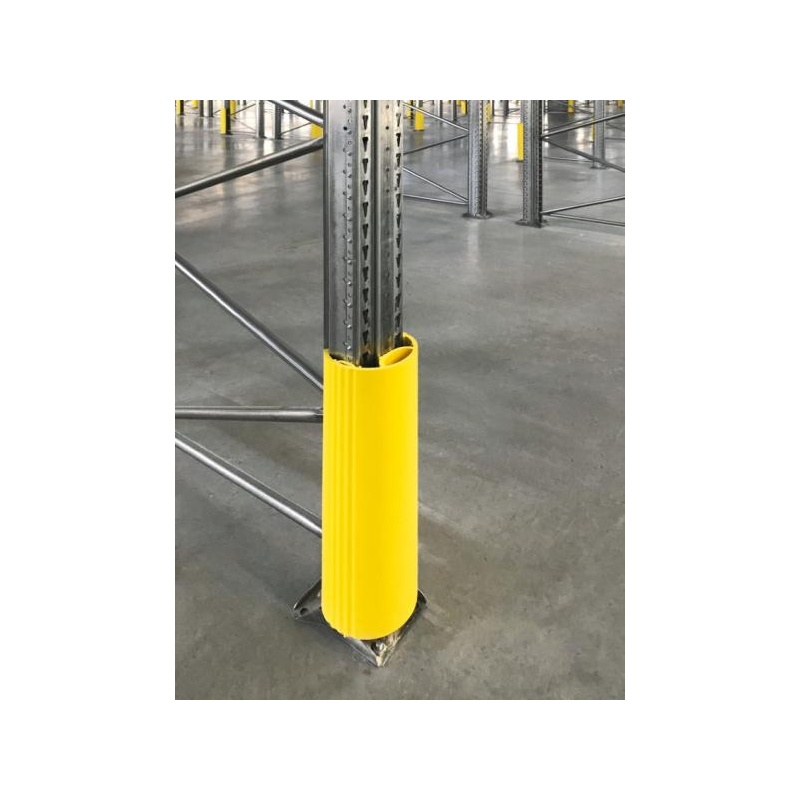

The shelf protection is suitable for shelf posts with dimensions of 80-100 mm, can withstand up to 1280 J of impact force.
Material: Reflex (technical polymer), recyclable material
Color: RAL 1018
Dimensions: 13 x 11.7 x 60 cm, thickness 7 mm
Weight: 3.1
Operating temperature: −10 ºC to 60 ºC
Conforms to TÜV (DIN EN 15512: 2010-09 and BGR 234/12)

Protection bollard for loads of heavy traffic. Octagonal external design to resist impacts from every direction. The internal structure is totally new: sturdy metal plate covered with 4 internal shock absorbers designed to guarantee high shock absorption. Fixing accessories included.

Material: REFLEX
Colour: yellow RAL 1018, black RAL 9005
Impact resistance: 9365J
Dimensions: Ø200 H1200mm

Double horizontal borders provide protection in areas with high traffic congestion and heavy vessels.

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- dimensions: Ø150 (K) 500 mm
- dimensions of the base plate: 180 x 160 x 10 mm
- impact resistance: 3400 J
- TÜV certified according to DIN EN 15512: 2010-09
- environment: −10 ºC to 50 ºC
- minimum order quantity: 2 meters
Fastened to the floor with M12 anchors (included) and with chemical glue (not included)

Minimum order quantity: 2 meters

New pedestrian safety barrier suitable for areas where heavy loads are handled. The barrier has a double profile which is highly flexible and more resistant to shocks. The front fixing of Bflex profile on the vertical column ensures the maximum protection both over the entire lenght of the guardrail and on its external corners. 2000 mm modules with continuous fixing according to customer requirements. Fixing accessories and shock absorber pad included.

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- dimensions of the bar: (L) 80 mm (K) 300 mm
- barrier height: H 1100 mm
- dimensions of the base plate: 180 x 160 x 10 mm
- impact resistance: 7900 J
- environment: −10 ºC to 50 ºC
- fixed to the floor with M12 anchors (included) and chemical glue
- sale unit: linm

Plastic crash barriers are extremely flexible and a good shock absorber, providing protection in a busy environment where heavy vessels are handled.

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- dimensions of the bar: (L) 80 mm (K) 300 mm
- barrier height: 450 mm
- dimensions of the base plate: 180 x 160 x 10 mm
- impact resistance: 3900 J
- environment: −10 ºC to 50 ºC
- fixed to the floor with M12 anchors (included) and chemical glue
- sales unit: linm
