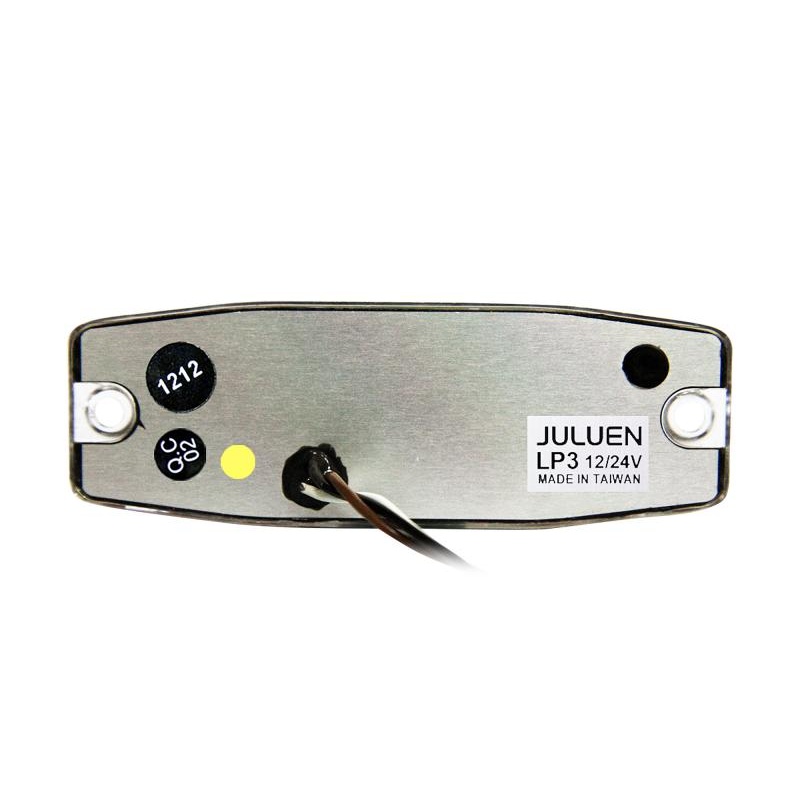

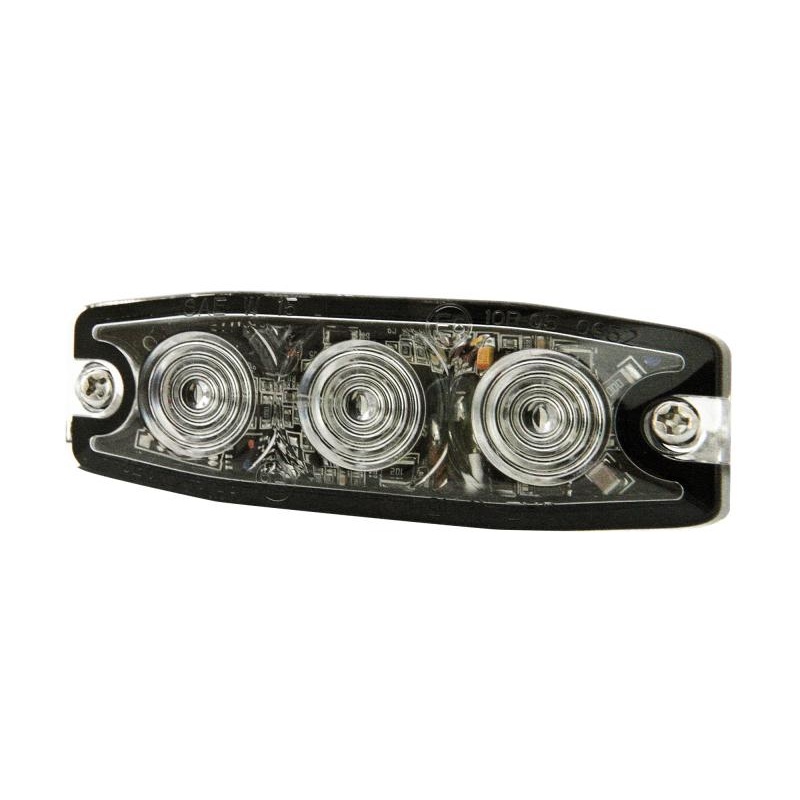

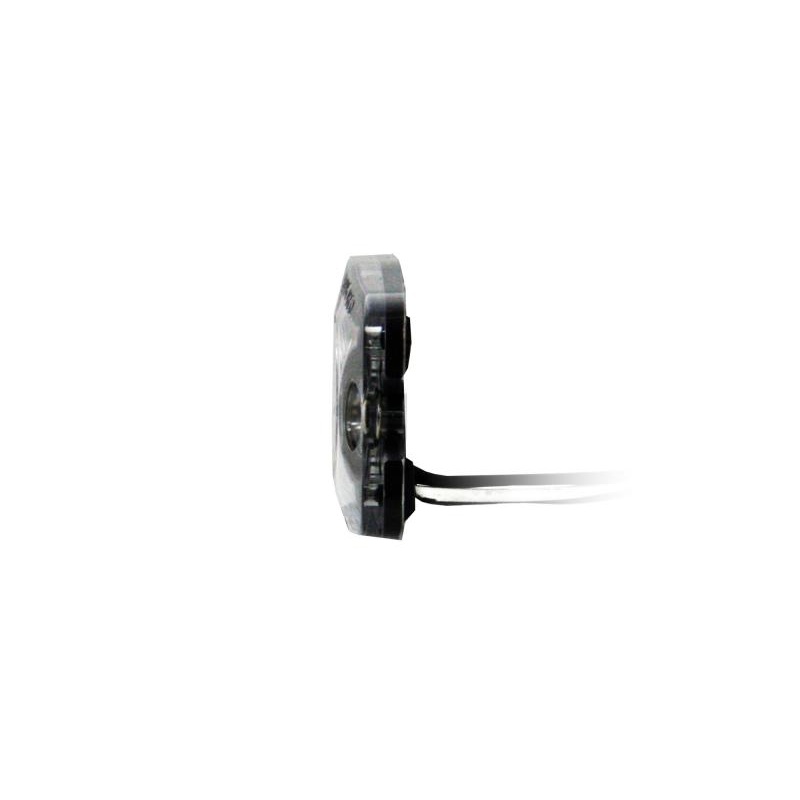

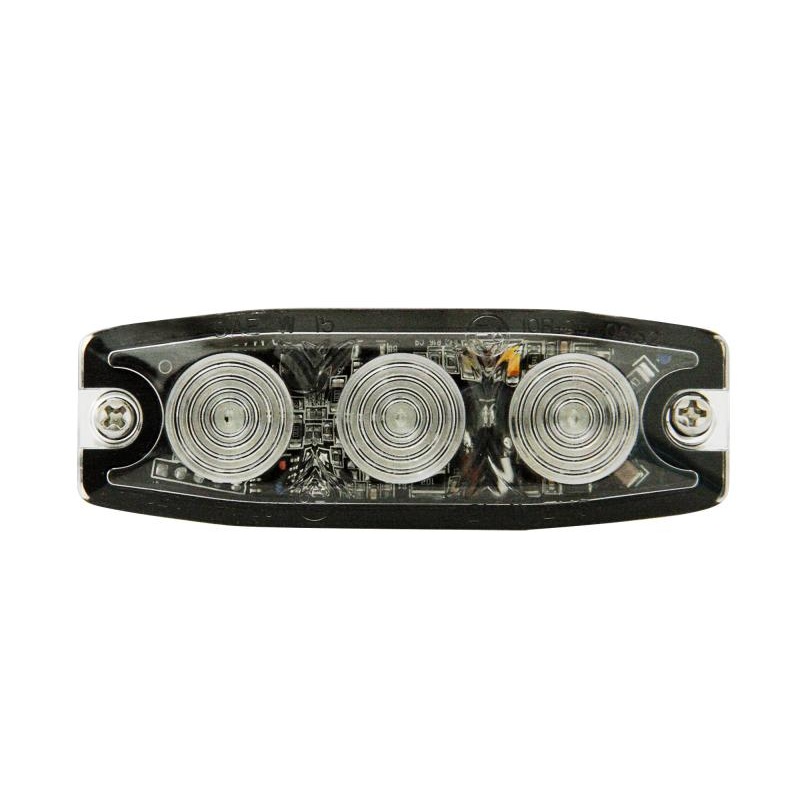

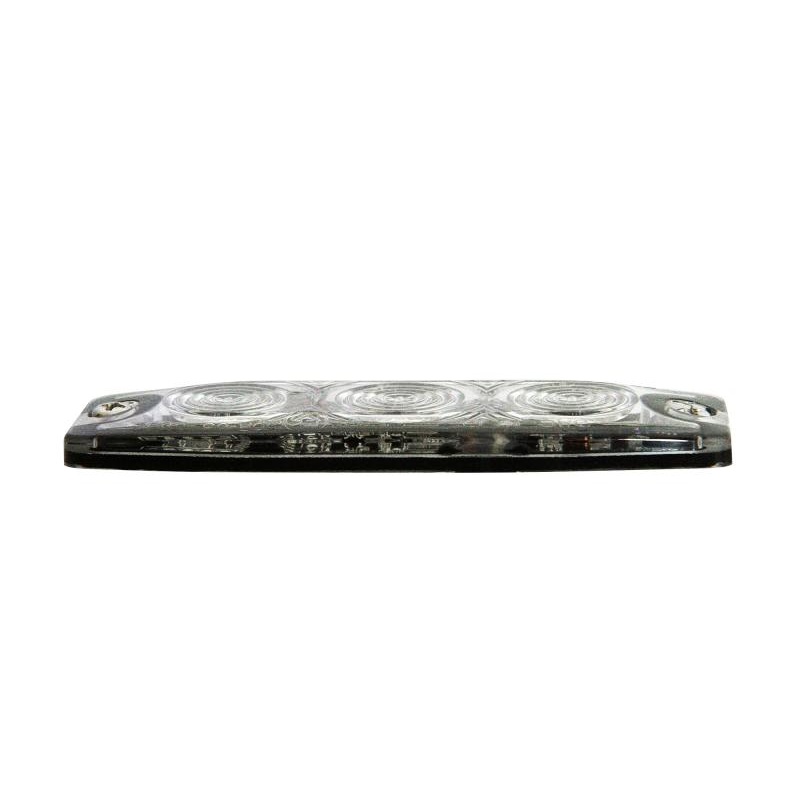

Grill lamp Light Pad LP3 LED (M43) 12/24V - Amber

LED REFLECT grill lights are directional warning lamps, being an additional equipment for special vehicles.

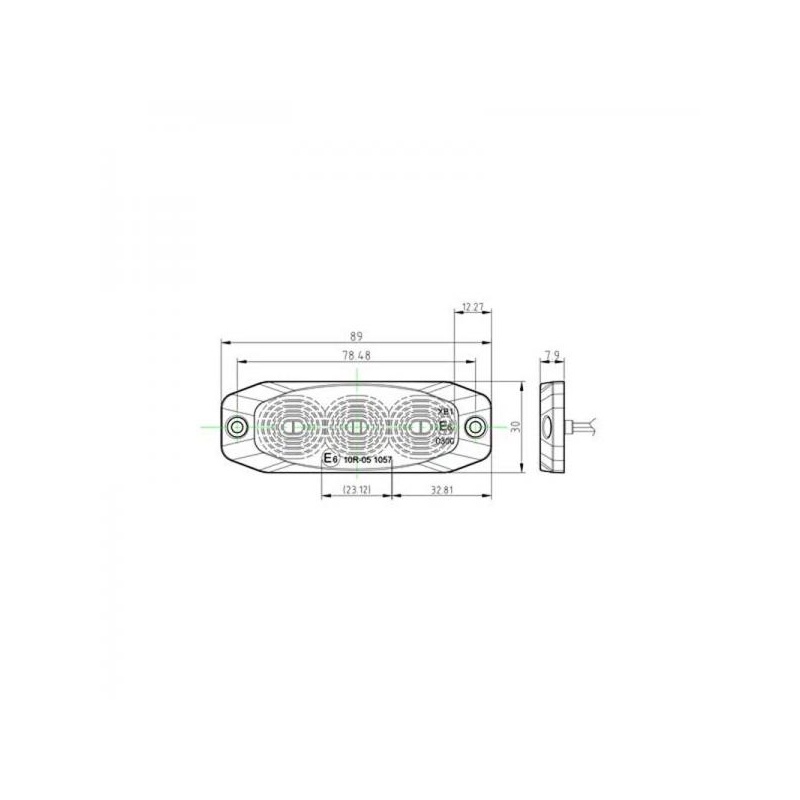

length: 10 cm
height: 3,7cm
voltage: 12/24V
Easy assembly (using the included screws)
LED colour: amber
WARRANTY 48 MONTHS !!
Approval E20 R10, E9 R65

17x7,5x3 cm
voltage: 12/24V
Easy assembly (using the included screws)
LED colour: amber
WARRANTY 48 MONTHS !!
Approval E20 R10, E9 R65

4x2W LED
amber
clear lens
12V, 24V
-40°C~ 60°C
CE,ISO900, R10
Flashing patterns: 10
95x27x8mm

Light Source: LED
Material: PC
Led Color: Amber
Lens Color: Clear
Input Voltage: 12V, 24V
Power: 6W
Operating Temperature: -40°C~ 60°C
Certifications: CE,ISO900
Warranty: 2 Years
Flash Patterns: 9 or Customized

132x50x19mm
Amber warning lamp with amber Halo-ring
warning light 6LED, Halo-ring 18LED
14 flashing options, several flashers can be synchronized together
12-24V
Screws: 120mm
Approval: SAE J595 Class1 (A/B/R/W); SAE J592 (A/R); SAE J2042 (A/R); CA Title13 (A/B/R); ECE R7 (R/W); ECE R10; ECE R65 (XA1, XB1); ECE R91 (A)
IPx8

The OPTIBEAM FLEX LM6 warning light offers completely new possibilities in terms of installation location. The light, which can be installed on surfaces curved up to 120 degrees, can be installed, for example, on the support leg of a crane, on the corners of a vehicle, or on other surfaces where a light with a straight and rigid body could not be used before. The design is aerodynamic and takes into account today's demands in terms of functions and attachments, including interference protection CISPR CLASS 3 (no radio interference) and ECE R65 class 2 (allowed in traffic both day and night), as well as IP67 protection class against water and dust. In addition, the FLEX LM6 has dual memory with separate wiring to quickly switch between steady light and warning light modes.

- Dimensions: 126.8 x 30.2 x 10.7 mm
- Bends up to 120° to fit a curved mounting surface.
- made of Dow Silastic silicone
- aerodynamic: minimal wind resistance
- screw fastening with glue, screw covers
- white glass.
- 6 High-Power LEDs
- 20 flashing modes, double memory, synchronisable: up to 20 lights
- short circuit protection, weatherproof, vibration resistant.
- working temperature: -40° ... +65°C
- Certificates: ECE R65 Class 2, ECE 10, SAE J595 Cl.1, SAE J845 Cl.1, CISPR25 Cl.3, CA13
- Cable length: 300 mm
- Voltage: 12/24V
