Guard rail GRIN ø150 L2350 h200 mm

Self-closing wicket gate

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- impact resistance: 650 J
- dimensions: ø90 (P) 600 x (H) 1150 mm
- environment: −10 ºC to 50 ºC

The price does not include support posts!

Self-closing gate

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- impact resistance: 2000J
- dimensions: ø150 (P)600 x (H) 1150 mm
- environment: −10 ºC to 50 ºC

The price does not include support posts!

PEDESTRIAN SAFETY BARRIERS
The barrier for the segregation and safeguard of pedestrians in areas where heavy loads are handled. Height designed for the optimal protection of pedestrians. The barriers can be moved, reused and adapted to other areas requiring protection or for new needs after installation. The high-visibility, scratch-resistant color makes it easy to identify pedestrian areas, limiting the risk of collision. Flexible protective barrier complete with corner solutions which can also be combined with pedestrian and truck gates. 2000 mm standard modules with continuous fixing according to customer requirements. Fixing accessories included.

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- impact resistance: 8900 J
- dimensions: Ø150 (H) 1150 mm
- minimal order is 2 meters
- temperature resistance: −10 ºC to 60 ºC
- sales unit: linm

Double horizontal borders provide protection in areas with high traffic congestion and heavy vessels.

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- dimensions: Ø150 (K) 500 mm
- dimensions of the base plate: 180 x 160 x 10 mm
- impact resistance: 3400 J
- TÜV certified according to DIN EN 15512: 2010-09
- environment: −10 ºC to 50 ºC
- minimum order quantity: 2 meters
Fastened to the floor with M12 anchors (included) and with chemical glue (not included)

Minimum order quantity: 2 meters

Innovative protective barrier for areas where heavy loads are handled. First barrier in the world with a lower rail height that can be adjusted on-site according to the most critical areas to be protected and the type of trucks and forklifts used by the end user. Thanks to the robust external connection systems, the barrier is easy to assemble and the post better supports the entire structure. Solution suitable for heavy impacts at a low height that also offers protection to pedestrians thanks to the handrail at human height.
– color: yellow RAL 1018, black RAL 9005
– impact tolerance : 8700 J
– dimension: Ø150 (H)1100 mm
– minimum order: 2 meters
– enviroment: −10 ºC kuni 60 ºC
– sales unit: linm

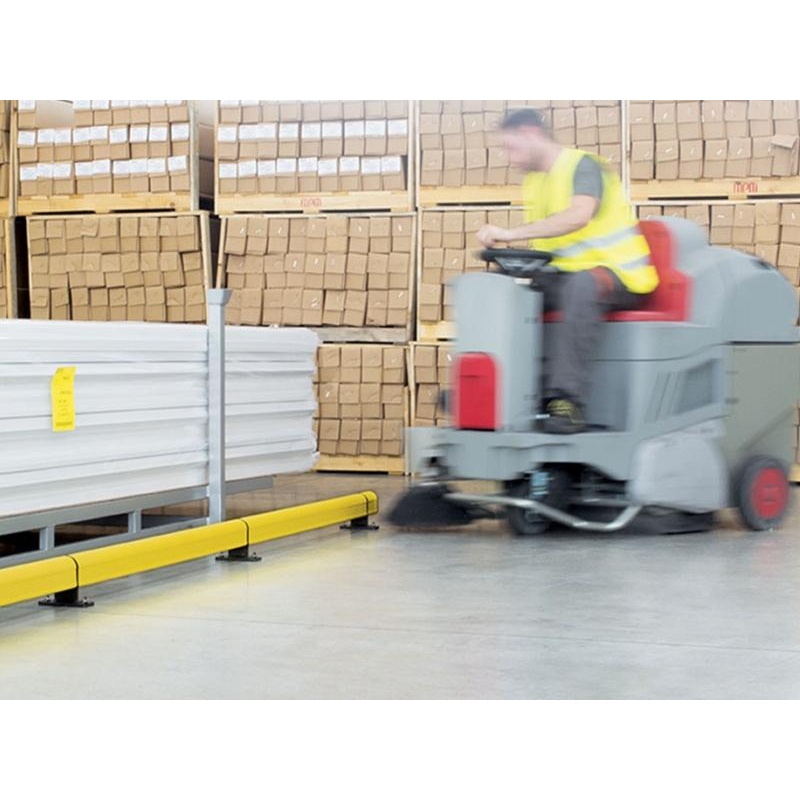

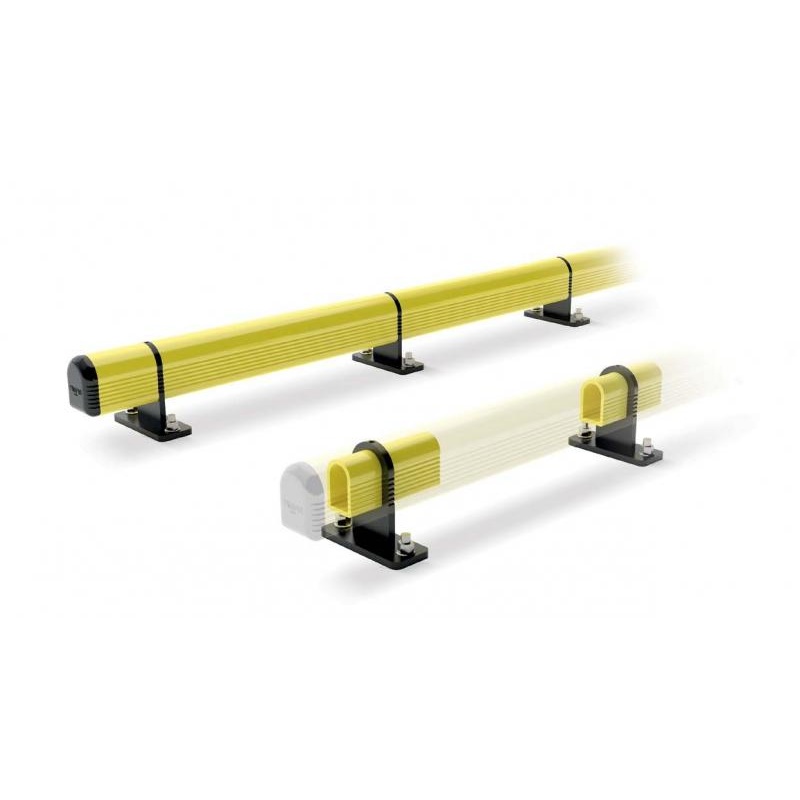

Plastic crash barriers are extremely flexible and a good shock absorber, providing protection in a busy environment where heavy vessels are handled.

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- dimensions of the bar: (L) 80 mm (K) 300 mm
- barrier height: 450 mm
- dimensions of the base plate: 180 x 160 x 10 mm
- impact resistance: 3900 J
- environment: −10 ºC to 50 ºC
- fixed to the floor with M12 anchors (included) and chemical glue
- sales unit: linm
