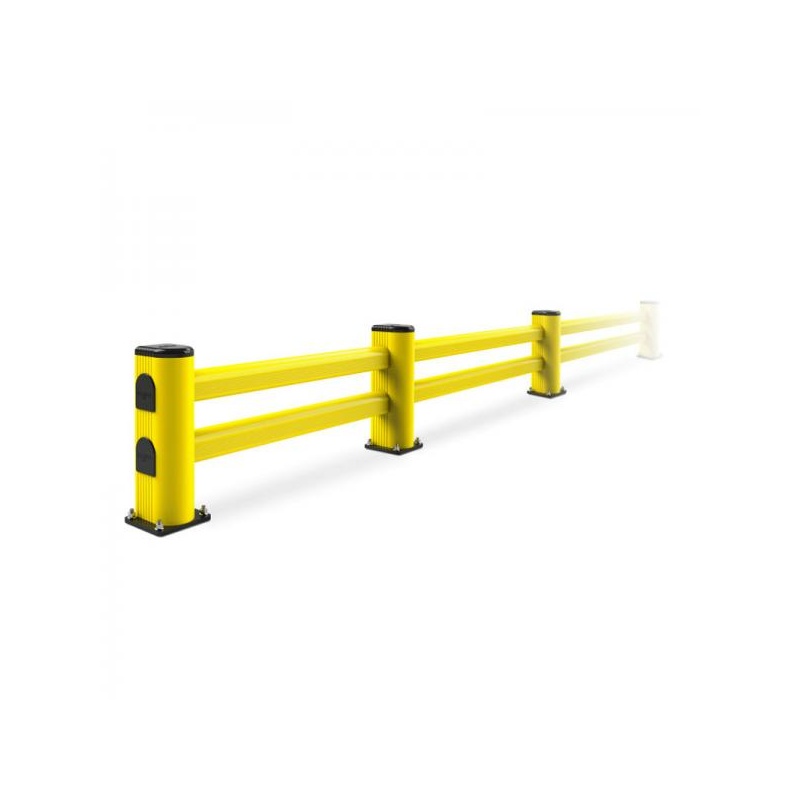

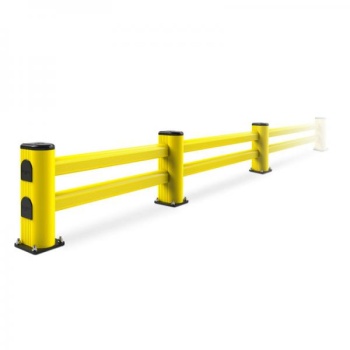

Guard rail LM ø150 H500 mm modular

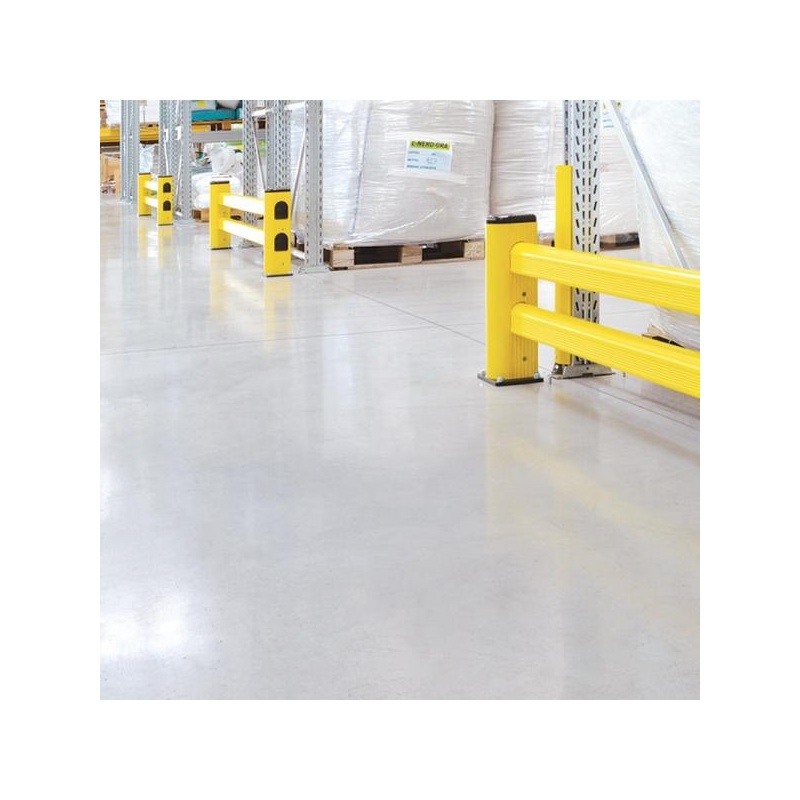

The end barrier is primarily intended to protect the cargo shelf aisle.

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- impact resistance: 800 J
- dimensions: Ø90 (P) 2400 (H) 350 mm
- environment: −10 ºC to 60 ºC

Self-closing foot gate

– material: REFLEX (technopolymer)
– color: yellow RAL 1018, black RAL 9005
– impact resistance: 2000J
– dimensions: ø150 (L) 1100 x (H) 1150 mm
– environment: -10 ºC to 50 ºC

The price does not include support posts!

PEDESTRIAN SAFETY BARRIERS

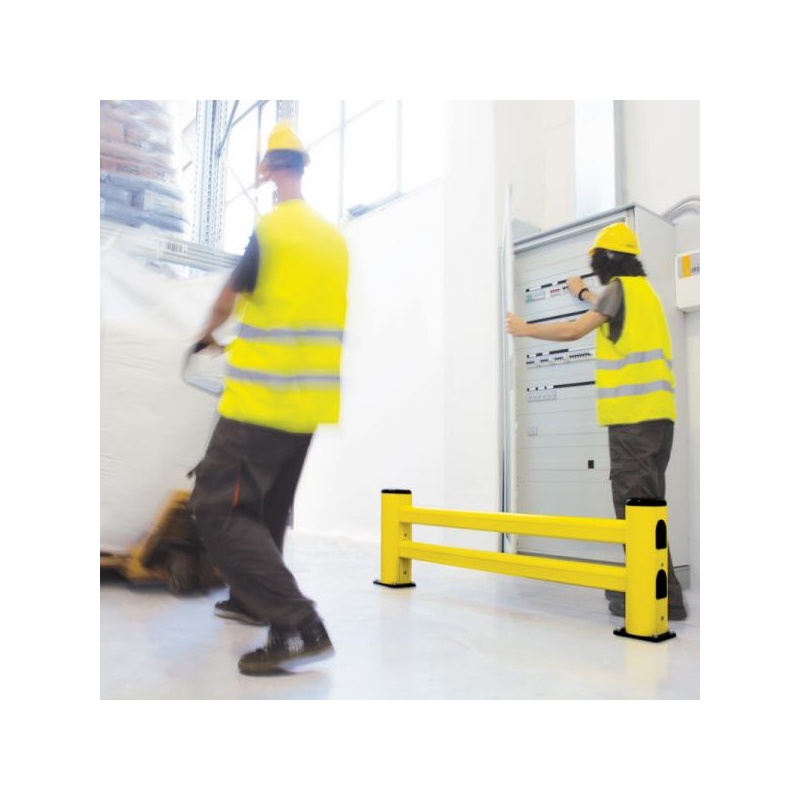

The barrier for the segregation and safeguard of pedestrians in areas where heavy loads are handled. Height designed for the optimal protection of pedestrians. The barriers can be moved, reused and adapted to other areas requiring protection or for new needs after installation. The high-visibility, scratch-resistant color makes it easy to identify pedestrian areas, limiting the risk of collision. Flexible protective barrier complete with corner solutions which can also be combined with pedestrian and truck gates. 2000 mm standard modules with continuous fixing according to customer requirements. Fixing accessories included.

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- impact resistance: 8900 J
- dimensions: Ø150 (H) 1150 mm
- minimal order is 2 meters
- temperature resistance: −10 ºC to 60 ºC
- sales unit: linm

New pedestrian safety barrier suitable for areas where heavy loads are handled. The barrier has a double profile which is highly flexible and more resistant to shocks. The front fixing of Bflex profile on the vertical column ensures the maximum protection both over the entire lenght of the guardrail and on its external corners. 2000 mm modules with continuous fixing according to customer requirements. Fixing accessories and shock absorber pad included.

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- dimensions of the bar: (L) 80 mm (K) 300 mm
- barrier height: H 1100 mm
- dimensions of the base plate: 180 x 160 x 10 mm
- impact resistance: 7900 J
- environment: −10 ºC to 50 ºC
- fixed to the floor with M12 anchors (included) and chemical glue
- sale unit: linm

Plastic crash barriers are extremely flexible and a good shock absorber, providing protection in a busy environment where heavy vessels are handled.

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- dimensions of the bar: (L) 80 mm (K) 300 mm
- barrier height: 450 mm
- dimensions of the base plate: 180 x 160 x 10 mm
- impact resistance: 3900 J
- environment: −10 ºC to 50 ºC
- fixed to the floor with M12 anchors (included) and chemical glue
- sales unit: linm

Gate with lift opening. Equipped with ergonomic handle and safety lock, allowing easy passage of pedestrians and trucks. Solution that can be combined with the Pedestrian 150 protective barrier and link system. Minimum width 1100 mm, maximum width 2000 mm. Fixing accessories included.

- material: REFLEX (technopolymer)
- color: yellow RAL 1018, black RAL 9005
- impact resistance: 650 J
- dimensions: ø90 (H) 1150 mm
- environment: −10 ºC to 50 ºC
