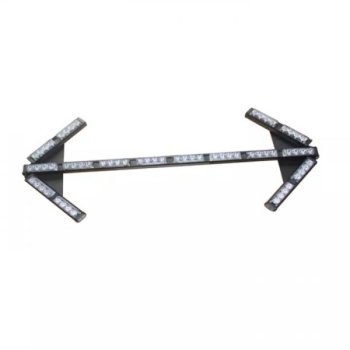

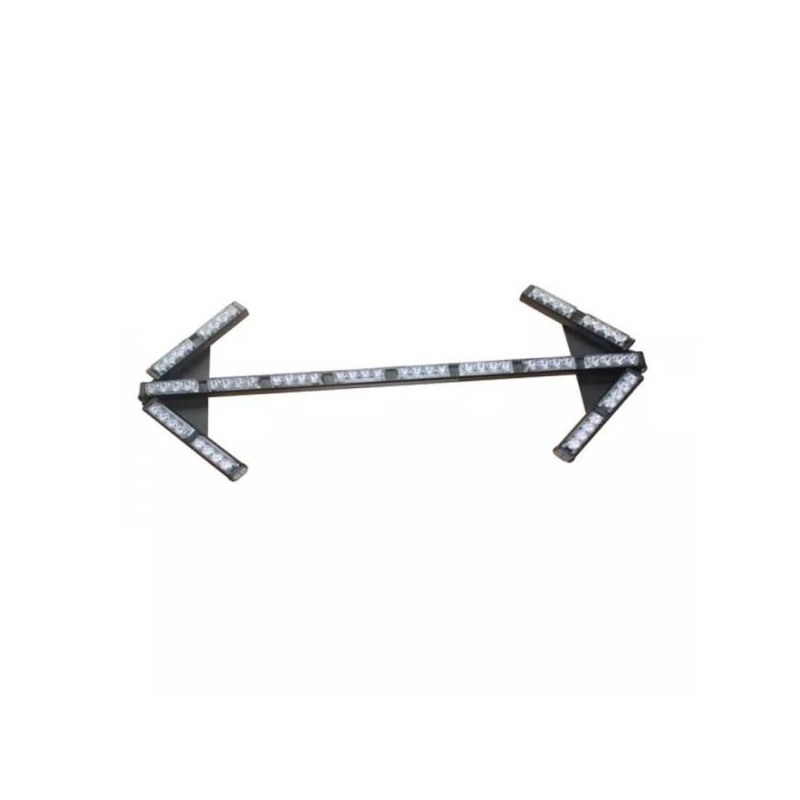

LED arrows, 10-30V, with controller

- 9 lamps Ø20 cm L8H
- aluminum structure
- 12V / 24V power supply to the battery automotive.
- cable control
- warranty for 24 months!

Dimensions: 673x24x38mm
Voltage: 12-24V
Description: Yellow light, different modes, 6 modules
Description: aluminum housing, bolt mounting (T-bolt)
Power consumption: 2.9A / 12.8VDC, 1.5A / 24VDC
Control panel 1603-140710, mounting kit 1603-140733, 1603-140734

- Consists of 8xØ210 LEDs
- Color: yellow
- IP56
- about 50,000 working hours
- Light class: L8H
- Light source: LED 1.6kcd, 12V, lens diameter 210 mm x 85 mm


- Frame: aluminum
- Size: 860x860 mm; 190 mm
- Panel: Reversible single sided arrow

Weight: 13 kg

LED Light Arrow Type LP 8
8 Multi-Light 200 LED lamps 220 mm, mounted on an aluminum frame with the slip-on device and 3 m connecting cable with battery clip
Bracket for mounting
Voltage: 12/24V
Dimensions: 1130 x 900 x 165 mm
Weight: 13 kg

The L15 arrow is made of 15 lamps with a lampshade diameter of Ø200mm
Power supply: 12V / 24V
Active diffuser diameter: ϕ 200 mm
Color of the lampshade: orange
Light source: LED insert with increased luminous intensity with a special optical system meeting the parameters of the L8H lamp class (luminous intensity 2000 cd) according to the PN.EN 12352: 2010 standard
Average daily current consumption of one lamp: 0.4A (12V) or 0.2A (24V)
Lamp lighting type: pulsating light
Display modes: left arrow, right arrow, cross, zero
Battery discharge indication: acoustic and optical signal
Twilight light intensity adjustment: day 100% / night 50%
Dimensions: 1060x1060 [mm], 15kg
Construction: steel, galvanized

Safety turn signal FDR-6 is ideal for installation on road maintenance vehicles.
6 LED modules, yellow
length: 120 cm
height: 20 cm
width: 5 cm
E20 R10 Light Class L8H
voltage: 12V
includes: control panel and wires
install with the back facing the direction of travel
