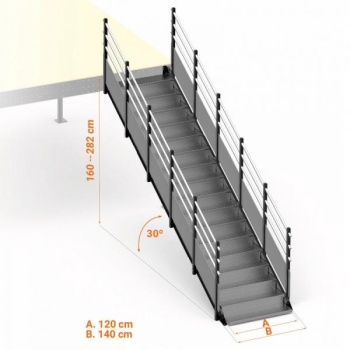

M public access stairs 30º
SKU: 31500
Unit: set
Qty: Not available
Delivery time: 2-3 nädalat
Unit: set
Qty: Not available
Delivery time: 2-3 nädalat
DATA:
Compatible with subfloors of the following sizes: S, M, L, XL
The maximum height from the floorboard is 282 cm
Minimum height from the floorboard 160 cm
Height adjustable every 12.1 cm
Total height: 171, 183, 195, 207, 219, 232, 244, 256, 268, 280, 158 cm
Structural material and finish of powder-coated structural steel
Handrail material and finish: Anodized aluminum (other colors can be ordered, ask for an offer)
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 17
Dimensions of steps: 120 x 30 cm
Slope and shadow: 36º / The shadow of the stairs is 173% of the height.
Height between steps (riser): 16cm
Step material: Non-slip galvanized steel (8 mm with internal perforations)
Maximum load per step: 200 kg
Maximum load capacity: 200 kg
Compatible with subfloors of the following sizes: S, M, L, XL
The maximum height from the floorboard is 282 cm
Minimum height from the floorboard 160 cm
Height adjustable every 12.1 cm
Total height: 171, 183, 195, 207, 219, 232, 244, 256, 268, 280, 158 cm
Structural material and finish of powder-coated structural steel
Handrail material and finish: Anodized aluminum (other colors can be ordered, ask for an offer)
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 17
Dimensions of steps: 120 x 30 cm
Slope and shadow: 36º / The shadow of the stairs is 173% of the height.
Height between steps (riser): 16cm
Step material: Non-slip galvanized steel (8 mm with internal perforations)
Maximum load per step: 200 kg
Maximum load capacity: 200 kg
Similar products
DATA:
The maximum height from the floorboard is 233 cm
Minimum height from the floorboard 160 cm
Height adjustable every 6.05 cm
Total height 221, 160, 227, 166, 233, 173, 179, 185, 191, 197, 203, 209, 215 cm
Structural material and finish of powder-coated structural steel
Handrail material and finish: Aluminum (other colors can be ordered, ask for an offer)
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 11
Dimensions of steps: 80 x 25 cm
Tilt and shadow: 42º / 111º
Height between steps (riser): 20cm
Material of steps: European Radiata pine plywood 30 mm thick
Maximum load per step: 200 kg
Evenly distributed load: 200 kg / m²)
The maximum height from the floorboard is 233 cm
Minimum height from the floorboard 160 cm
Height adjustable every 6.05 cm
Total height 221, 160, 227, 166, 233, 173, 179, 185, 191, 197, 203, 209, 215 cm
Structural material and finish of powder-coated structural steel
Handrail material and finish: Aluminum (other colors can be ordered, ask for an offer)
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 11
Dimensions of steps: 80 x 25 cm
Tilt and shadow: 42º / 111º
Height between steps (riser): 20cm
Material of steps: European Radiata pine plywood 30 mm thick
Maximum load per step: 200 kg
Evenly distributed load: 200 kg / m²)
SKU: 30900
, Qty: Out of Stock
, Delivery time: 2-3 nädalat
DATA:
Ladder height: 318cm
The maximum height from the floorboard is 318 cm
Minimum height from the floorboard 173 cm
Internal size: 30cm
Horizontal projection: 1.4 m
Step width: 9 cm
Distance between steps: 28 cm
Assembled size: 75 cm
Material: anodized aluminum
Maximum load per step: 150 kg
Maximum load: 150 kg
Ladder height: 318cm
The maximum height from the floorboard is 318 cm
Minimum height from the floorboard 173 cm
Internal size: 30cm
Horizontal projection: 1.4 m
Step width: 9 cm
Distance between steps: 28 cm
Assembled size: 75 cm
Material: anodized aluminum
Maximum load per step: 150 kg
Maximum load: 150 kg
SKU: 33011
, Qty: Out of Stock
, Delivery time: 2-3 nädalat
DATA:
Can be adjusted with the following floor sizes: M, S
Maximum height from the floorboard: 233 cm
Minimum height from the floorboard: 173 cm
Height adjustable every 12.1 cm
Total height: 158, 171, 183, 195, 207, 219, 232 cm
Handrail material and finish: anodised aluminum
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 5 tread on the right and 6 on the left
Dimensions of steps: 59.3 x 22 x 8 cm
Slope and shadow: 62º / The shadow of the stairs is 51% of the height.
Height between steps (riser): 22 cm
Material of steps: European Radiata pine plywood 30 mm thick
Maximum load per step: 150 kg
Evenly distributed load: 150 kg
Can be adjusted with the following floor sizes: M, S
Maximum height from the floorboard: 233 cm
Minimum height from the floorboard: 173 cm
Height adjustable every 12.1 cm
Total height: 158, 171, 183, 195, 207, 219, 232 cm
Handrail material and finish: anodised aluminum
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 5 tread on the right and 6 on the left
Dimensions of steps: 59.3 x 22 x 8 cm
Slope and shadow: 62º / The shadow of the stairs is 51% of the height.
Height between steps (riser): 22 cm
Material of steps: European Radiata pine plywood 30 mm thick
Maximum load per step: 150 kg
Evenly distributed load: 150 kg
SKU: 30401
, Qty: Not available
, Delivery time: 2-3 nädalat
DATA:
Adjustable with the following floor sizes: XL, L, M, S
The maximum height from the floorboard is 282 cm
Minimum height from the floorboard 173 cm
Height adjustable every 6.05 cm
Total height: 213, 280, 219, 225, 232, 238, 244, 250, 171, 256, 183, 262, 195, 268, 207, 274 cm
Structural material and finish of structural steel painted with powder coating
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 13
Dimensions of steps: 22.5 x 23 cm
Slope and shadow: 63º / The shadow of the stairs is 51% of the height.
Height between steps (riser): 20.5 cm
Step material: non-slip, galvanized steel (8 mm with internal perforations)
Maximum load per step: 150 kg
Evenly distributed load: 150 kg
Adjustable with the following floor sizes: XL, L, M, S
The maximum height from the floorboard is 282 cm
Minimum height from the floorboard 173 cm
Height adjustable every 6.05 cm
Total height: 213, 280, 219, 225, 232, 238, 244, 250, 171, 256, 183, 262, 195, 268, 207, 274 cm
Structural material and finish of structural steel painted with powder coating
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 13
Dimensions of steps: 22.5 x 23 cm
Slope and shadow: 63º / The shadow of the stairs is 51% of the height.
Height between steps (riser): 20.5 cm
Step material: non-slip, galvanized steel (8 mm with internal perforations)
Maximum load per step: 150 kg
Evenly distributed load: 150 kg
SKU: 31800
, Qty: Out of Stock
, Delivery time: 2-3 nädalat
DATA:
Compatible with the following floor sizes: XL, L, M, S
The maximum height from the floorboard is 233 cm
Minimum height from the floorboard 160 cm
Height adjustable every 12.1 cm
Total height: 158, 171, 183, 195, 207, 219, 232 cm
Structural material and finish of powder-coated structural steel
Handrail material and finish: Anodized aluminum (other colors can be ordered, ask for an offer)
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 12
Dimensions of steps: 100 x 30 cm
Slope and shadow: 36º / The shadow of the stairs is 138% of the height.
Height between steps (riser): 19cm
Step material: Non-slip galvanized steel (8 mm with internal perforations)
Maximum load per step: 200 kg
Maximum load capacity: 200 kg
Compatible with the following floor sizes: XL, L, M, S
The maximum height from the floorboard is 233 cm
Minimum height from the floorboard 160 cm
Height adjustable every 12.1 cm
Total height: 158, 171, 183, 195, 207, 219, 232 cm
Structural material and finish of powder-coated structural steel
Handrail material and finish: Anodized aluminum (other colors can be ordered, ask for an offer)
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 12
Dimensions of steps: 100 x 30 cm
Slope and shadow: 36º / The shadow of the stairs is 138% of the height.
Height between steps (riser): 19cm
Step material: Non-slip galvanized steel (8 mm with internal perforations)
Maximum load per step: 200 kg
Maximum load capacity: 200 kg
SKU: 35000
, Qty: Not available
, Delivery time: 2-3 nädalat
DATA:
Compatibility with the following intermediate floors: S
The maximum height from the floorboard is 233 cm
Minimum height from the floorboard 160 cm
Height adjustable every 12.1 cm
Total height: 158, 171, 183, 195, 207, 219, 232 cm
Number of steps: 7
Step dimensions: 46.2 x 10.7 cm
Slope and shadow: 70º / The shadow of the stairs is 39% of the height
Height between steps (riser): 29 cm
Material of steps: European Radiata pine plywood 30 mm thick
Maximum load per step: 150 kg
Maximum load: 150 kg
Compatibility with the following intermediate floors: S
The maximum height from the floorboard is 233 cm
Minimum height from the floorboard 160 cm
Height adjustable every 12.1 cm
Total height: 158, 171, 183, 195, 207, 219, 232 cm
Number of steps: 7
Step dimensions: 46.2 x 10.7 cm
Slope and shadow: 70º / The shadow of the stairs is 39% of the height
Height between steps (riser): 29 cm
Material of steps: European Radiata pine plywood 30 mm thick
Maximum load per step: 150 kg
Maximum load: 150 kg
SKU: 30801
, Qty: Out of Stock
, Delivery time: 2-3 nädalat
