Mezzanine TL 30 white

DATA SHEET
Type of product Only Mezzanine
Range Large
Compatibility Large
Maximum height above the flooring board (cm) 343
Minimum height above the flooring board (cm) 209
Available heights above beams (cm) 207, 213, 219, 225, 232, 238, 244, 250, 256, 262, 268, 274, 280, 286, 292, 298, 304, 310, 317, 323, 329, 335, 341
Height-adjustable every (cm) 6,05
Total maximum load (Kg) 4500
Beam height (cm) 30
Width/Length-adjustable every (cm) 10
Maximum length of the primary beam (cm) 640
Minimum length of the primary beam (cm) 480
Maximum length of the secondary beam (cm) 366
Minimum length of the secondary beam (cm) 216
Maximum area (m²) 23
Minimum area (m²) 9
Load capacity in its minimum extension (kg/m²) 800
Load capacity in its maximum extension (kg/m²) 200
Flooring material European Radiata pine plywood 18 mm thick
Material and finish of the structure Structural steel painted with powder coating
Net weight (Kg) 710
Gross weight (Kg with packaging) 776

DATA SHEET
Type of product Only Mezzanine
Range Large
Compatibility Large
Maximum height above the flooring board (cm) 343
Minimum height above the flooring board (cm) 209
Available heights above beams (cm) 207, 213, 219, 225, 232, 238, 244, 250, 256, 262, 268, 274, 280, 286, 292, 298, 304, 310, 317, 323, 329, 335, 341
Height-adjustable every (cm) 6,05
Total maximum load (Kg) 4500
Beam height (cm) 30
Width/Length-adjustable every (cm) 10
Maximum length of the primary beam (cm) 640
Minimum length of the primary beam (cm) 480
Maximum length of the secondary beam (cm) 366
Minimum length of the secondary beam (cm) 216
Maximum area (m²) 23
Minimum area (m²) 9
Load capacity in its minimum extension (kg/m²) 800
Load capacity in its maximum extension (kg/m²) 200
Flooring material European Radiata pine plywood 18 mm thick
Material and finish of the structure Structural steel painted with powder coating
Net weight (Kg) 710
Gross weight (Kg with packaging) 776

DATA SHEET
Type of product Only Mezzanine
Range Large
Compatibility Large
Maximum height above the flooring board (cm) 343
Minimum height above the flooring board (cm) 209
Available heights above beams (cm) 207, 213, 219, 225, 232, 238, 244, 250, 256, 262, 268, 274, 280, 286, 292, 298, 304, 310, 317, 323, 329, 335, 341
Height-adjustable every (cm) 6,05
Total maximum load (Kg) 3800
Beam height (cm) 30
Width/Length-adjustable every (cm) 10
Maximum length of the primary beam (cm) 540
Minimum length of the primary beam (cm) 380
Maximum length of the secondary beam (cm) 366
Minimum length of the secondary beam (cm) 216
Maximum area (m²) 20
Minimum area (m²) 7
Load capacity in its minimum extension (kg/m²) 800
Load capacity in its maximum extension (kg/m²) 200
Flooring material European Radiata pine plywood 18 mm thick
Material and finish of the structure Structural steel painted with powder coating
Net weight (Kg) 624
Gross weight (Kg with packaging) 687

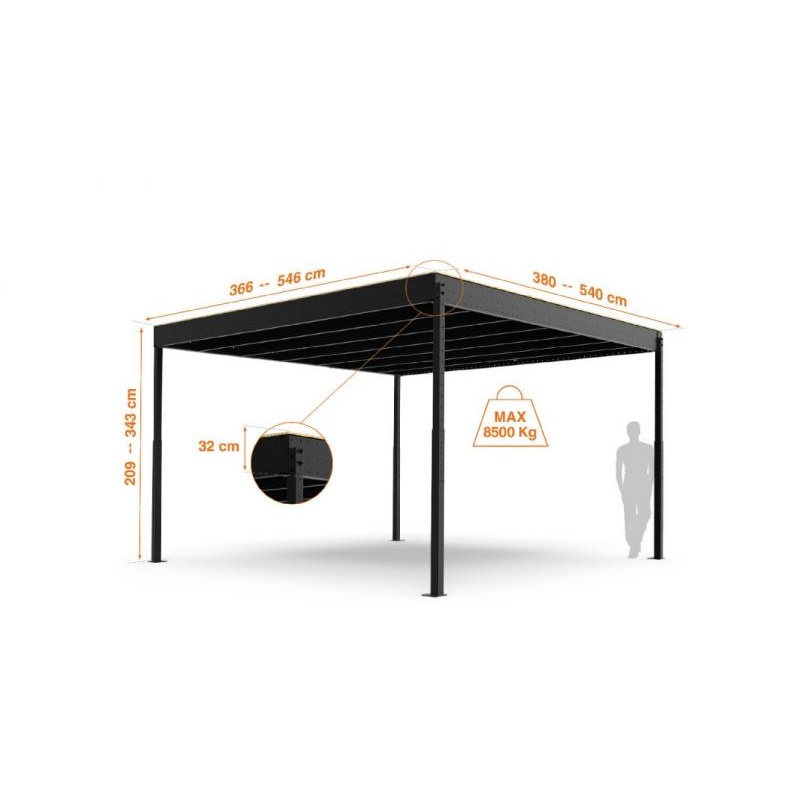

DATA SHEET
Type of product Only Mezzanine
Range Large
Compatibility Large
Maximum height above the flooring board (cm) 343
Minimum height above the flooring board (cm) 209
Available heights above beams (cm) 207, 213, 219, 225, 232, 238, 244, 250, 256, 262, 268, 274, 280, 286, 292, 298, 304, 310, 317, 323, 329, 335, 341
Height-adjustable every (cm) 6,05
Total maximum load (Kg) 8500
Beam height (cm) 30
Width/Length-adjustable every (cm) 10
Maximum length of the primary beam (cm) 540
Minimum length of the primary beam (cm) 380
Maximum length of the secondary beam (cm) 546
Minimum length of the secondary beam (cm) 366
Maximum area (m²) 29
Minimum area (m²) 14
Load capacity in its minimum extension (kg/m²) 500
Load capacity in its maximum extension (kg/m²) 300
Flooring material European Radiata pine plywood 18 mm thick
Material and finish of the structure Structural steel painted with powder coating
Net weight (Kg) 935
Gross weight (Kg with packaging) 1001

DATA SHEET
Type of product Only Mezzanine
Range Large
Compatibility Large
Maximum height above the flooring board (cm) 343
Minimum height above the flooring board (cm) 209
Available heights above beams (cm) 207, 213, 219, 225, 232, 238, 244, 250, 256, 262, 268, 274, 280, 286, 292, 298, 304, 310, 317, 323, 329, 335, 341
Height-adjustable every (cm) 6,05
Total maximum load (Kg) 6800
Beam height (cm) 30
Width/Length-adjustable every (cm) 10
Maximum length of the primary beam (cm) 640
Minimum length of the primary beam (cm) 480
Maximum length of the secondary beam (cm) 546
Minimum length of the secondary beam (cm) 366
Maximum area (m²) 34
Minimum area (m²) 14
Load capacity in its minimum extension (kg/m²) 600
Load capacity in its maximum extension (kg/m²) 200
Flooring material European Radiata pine plywood 18 mm thick
Material and finish of the structure Structural steel painted with powder coating
Net weight (Kg) 1066
Gross weight (Kg with packaging) 1132

DATA SHEET
Type of product Full Kits
Range Large
Maximum height above the flooring board (cm) 343
Minimum height above the flooring board (cm) 209
Available heights above beams (cm) 207, 213, 219, 225, 232, 238, 244, 250, 256, 262, 268, 274, 280, 286, 292, 298, 304, 310, 317, 323, 329, 335, 341
Height-adjustable every (cm) 6,05
Total maximum load (Kg) 8500
Beam height (cm) 30
Width/Length-adjustable every (cm) 10
Maximum length of the primary beam (cm) 540
Minimum length of the primary beam (cm) 380
Maximum length of the secondary beam (cm) 546
Minimum length of the secondary beam (cm) 366
Maximum area (m²) 29
Minimum area (m²) 14
Load capacity in its minimum extension (kg/m²) 500
Load capacity in its maximum extension (kg/m²) 300
Flooring material European Radiata pine plywood 18 mm thick
Material and finish of the structure Structural steel painted with powder coating
Net weight (Kg) 1103
Gross weight (Kg with packaging) 1167
