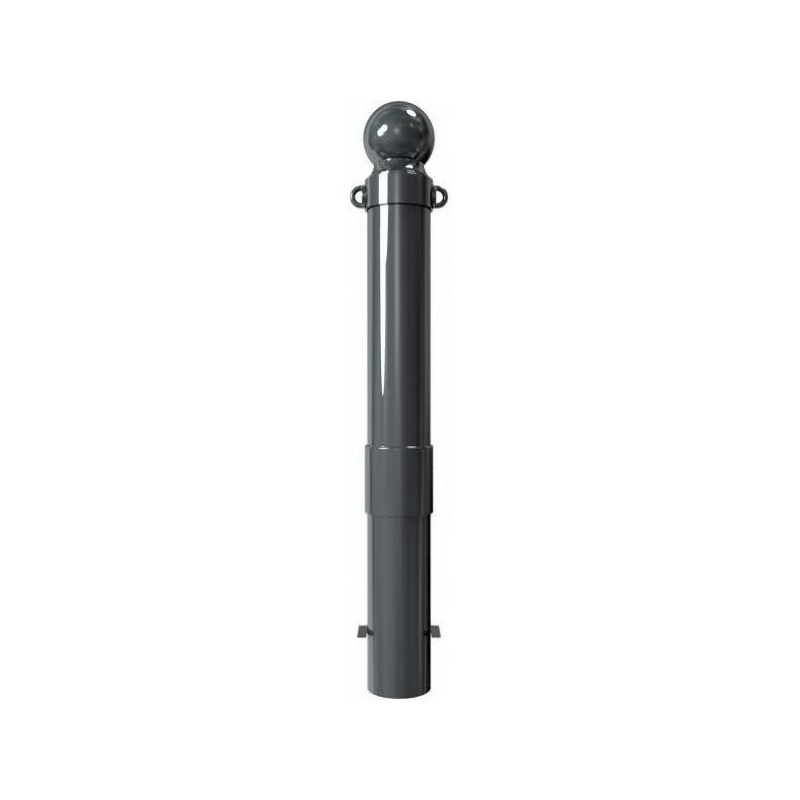

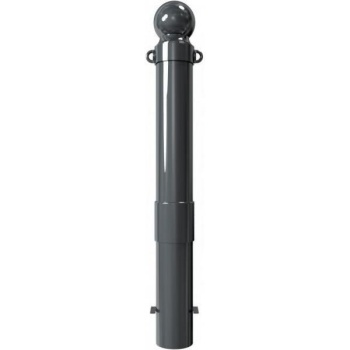

Ornamental bollard Ø140mm with aluminium globe and chain eyelets

Ornamental bollard, Ø60mm

5 different bollards in selection:
1. Stationary, for casting in concrete, with ground anchor, total length: approx. 1300mm. 5kg
2. Stationary, to be fixed by plugs, with base plate 100 x 150mm. 4kg
3. Removable, with triangular locking mechanism, self-engaging lock, with hot-dip galvanized ground socket part-no. 460.40: approx. 400 mm below ground. 7kg
4. Foldable, with triangular locking mechanism, self-engaging lock, to be fixed by plugs, with base plate 100 x 150 mm. 6kg
5. Foldable, with triangular locking mechanism, self-engaging lock, for casting in concrete, with hot-dip galvanized ground socket part-no. 470.60, approx. 400 mm below ground

- approx. 950mm above ground
- hot-dip galvanized and coated colour RAL 7016

Ornamental bollard, Ø76mm.

3 different bollards in selection:
1. Stationary, for casting in concrete, with ground anchor, total length: approx. 1300mm. 6,5kg
2. Stationary, to be fixed by plugs, with base plate 100 x 150mm. 5,5kg
3. Removable, with triangular locking mechanism, self-engaging lock, with hot-dip galvanized ground socket part-no. 476.40: approx. 400 mm below ground. 11,5kg

- approx. 900mm above ground
- flat head
- hot-dip galvanized and coated DB 703

Ornamental bollard, Ø60mm

8 different bollards in selection:
1. Stationary, for casting in concrete, with ground anchor, total length: approx. 1300mm. 5kg
2. Stationary, to be fixed by plugs, with base plate 100 x 150mm. 4kg
3. Removable, with triangular locking mechanism, self-engaging lock, with hot-dip galvanized ground socket part-no. 460.40: approx. 400 mm below ground. 7kg
4. Removable, with profile cylinder lock (three keys incl.) self-engaging lock, with hot-dip galvanized ground socket part-no. 460.40: approx. 400 mm below ground. 8kg
5. Foldable, with triangular locking mechanism, self-engaging lock, to be fixed by plugs, with base plate 100 x 150 mm. 6kg
6. Foldable, with cylinder lock (three keys incl.) self-engaging lock, with base plate 100 x 150mm. 7kg
7. Foldable, with triangular locking mechanism, self-engaging lock, for casting in concrete, with hot-dip galvanized ground socket part-no. 470.60, approx. 400 mm below ground. 8kg
8. Foldable, with cylinder lock (three keys incl.) self-engaging lock for casting in concrete, with hot-dip galvanized ground socket part-no. 470.60, approx. 400 mm below ground. 9kg

- approx. 950mm above ground
- hot-dip galvanized and coated DB 703

Ornamental bollard, Ø82mm

8 different bollards in selection:
1. Stationary, for casting in concrete, with ground anchor, total length: approx. 1300mm. 9,5kg
2. Stationary, to be fixed by plugs, with base plate 100 x 150mm. 8,5kg
3. Removable, with triangular locking mechanism, self-engaging lock, with hot-dip galvanized ground socket part-no. 470.10: approx. 500 mm below ground. 13kg
4. Removable, with profile cylinder lock (three keys incl.) self-engaging lock, with hot-dip galvanized ground socket part-no. 470.10: approx. 500 mm below ground. 13kg
5. Foldable, with triangular locking mechanism, self-engaging lock, to be fixed by plugs, with base plate 100 x 150 mm. 9kg
6. Foldable, with cylinder lock (three keys incl.) self-engaging lock, with base plate 100 x 150mm. 10kg
7. Foldable, with triangular locking mechanism, self-engaging lock, for casting in concrete, with hot-dip galvanized ground socket part-no. 470.60, approx. 400 mm below ground. 11kg
8. Foldable, with cylinder lock (three keys incl.) self-engaging lock for casting in concrete, with hot-dip galvanized ground socket part-no. 470.60, approx. 400 mm below ground. 12,5kg

- approx. 950mm above ground
- hot-dip galvanized and coated DB 703

Ornamental bollard, Ø82mm

8 different bollards in selection:
1. Stationary, for casting in concrete, with ground anchor, total length: approx. 1300mm. 9,5kg
2. Stationary, to be fixed by plugs, with base plate 100 x 150mm. 8,5kg
3. Removable, with triangular locking mechanism, self-engaging lock, with hot-dip galvanized ground socket part-no. 470.10: approx. 500 mm below ground. 13kg
4. Removable, with profile cylinder lock (three keys incl.) self-engaging lock, with hot-dip galvanized ground socket part-no. 470.10: approx. 500 mm below ground. 13kg
5. Foldable, with triangular locking mechanism, self-engaging lock, to be fixed by plugs, with base plate 100 x 150 mm. 9kg
6. Foldable, with cylinder lock (three keys incl.) self-engaging lock, with base plate 100 x 150mm. 10kg
7. Foldable, with triangular locking mechanism, self-engaging lock, for casting in concrete, with hot-dip galvanized ground socket part-no. 470.60, approx. 400 mm below ground. 11kg
8. Foldable, with cylinder lock (three keys incl.) self-engaging lock for casting in concrete, with hot-dip galvanized ground socket part-no. 470.60, approx. 400 mm below ground. 12,5kg

- approx. 900mm above ground
- hot-dip galvanized and coated RAL 9005

DIMENSIONS
height: 110 cm
width: 6 cm
length: 10 cm
weigth: 12 kg

MATERIALS
varnished steel or stainless steel

INSTALLATION
The bollard is installed by setting anchoring pipes in the concrete

COLOR CHOICE: grey, dark grey, black
