Plastic cap Ø219,1 mm, black

Round tube D=42.4mm
wall thickness 2.65 mm
painted black with powder
maximum profile length 2 m

Round tube D=48.3mm
wall thickness 2.9 mm
powder coated yellow
maximum profile length 3 m

Steel wire is woven into the elastics of the banner attachment. The space between the fabric and the frame varies from 4 to 5 cm.
The rubbers are UV-resistant and long-lasting.

Specifications:
- Length: 160mm
- Rubber thickness: 6mm
- Rubber capacity 100kg

The distance of the print from the inner frame depends on the diameter of the frame tubes:
Tube 42 mm - Distance 5 cm
Tube 48 mm - Distance 4 cm

Stainless steel set screw for tubefittings.
Fits sizes Ø26.9 and Ø33.7 mm

Rubber tensioners are available in two sizes.

The distance of the print from the inner frame depends on the diameter of the frame tubes.

For a 25cm rubber band:
Tube 42 mm - Distance 9 cm
Tube 48 mm - Distance 8 cm

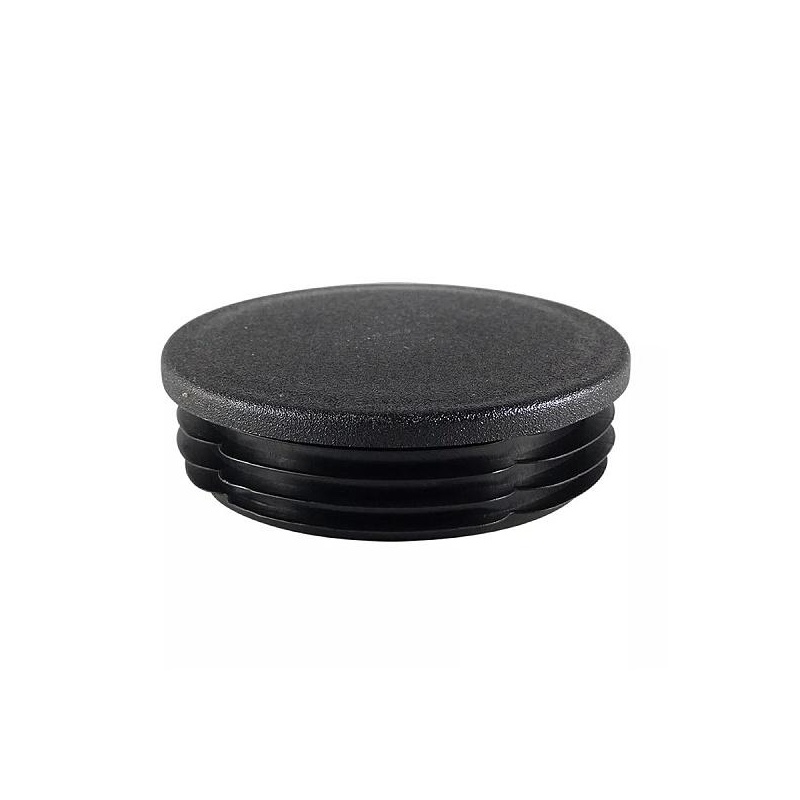

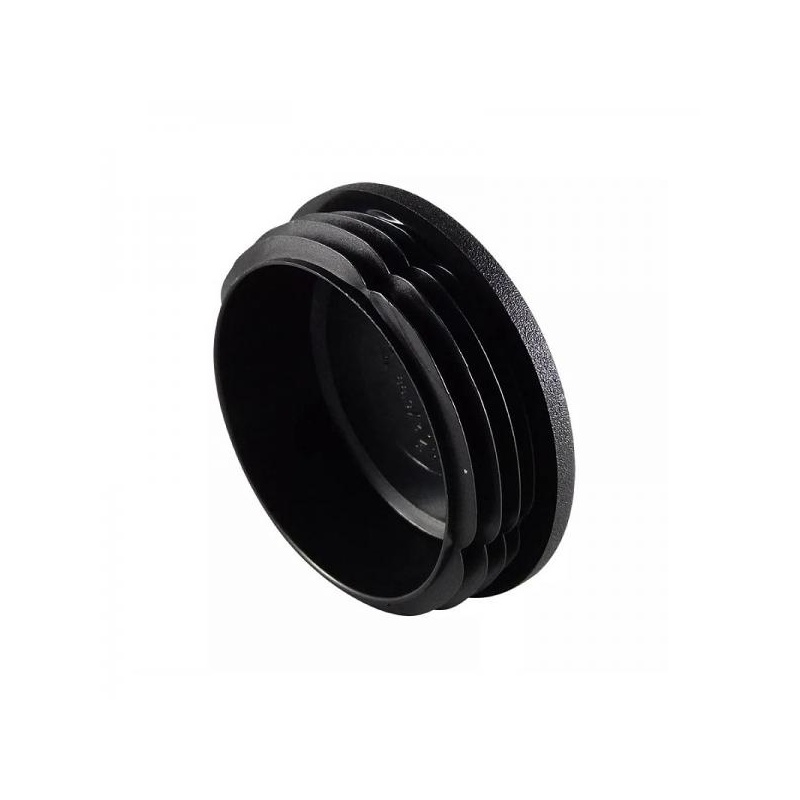

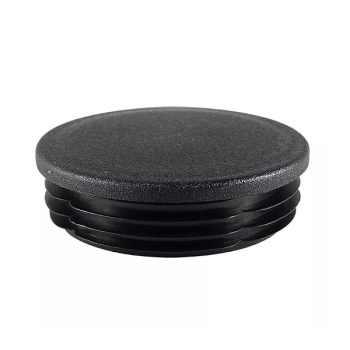

Plastic cap used to plug the end of the tube.

Cover caps are designed to close and finish pipe ends.
These caps are not intended to cover the clamp holes.
