Roadstuds 125x150x32 mm

Fluorescent marking for noticing the pavement edge
glows for 12 hours
Ø50mm H8mm
the glowing feature lasts up to 20 years

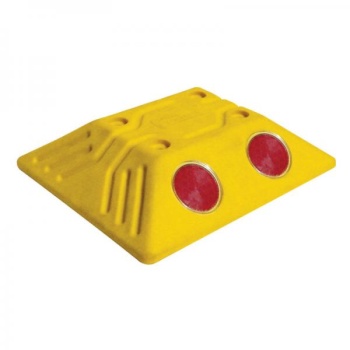

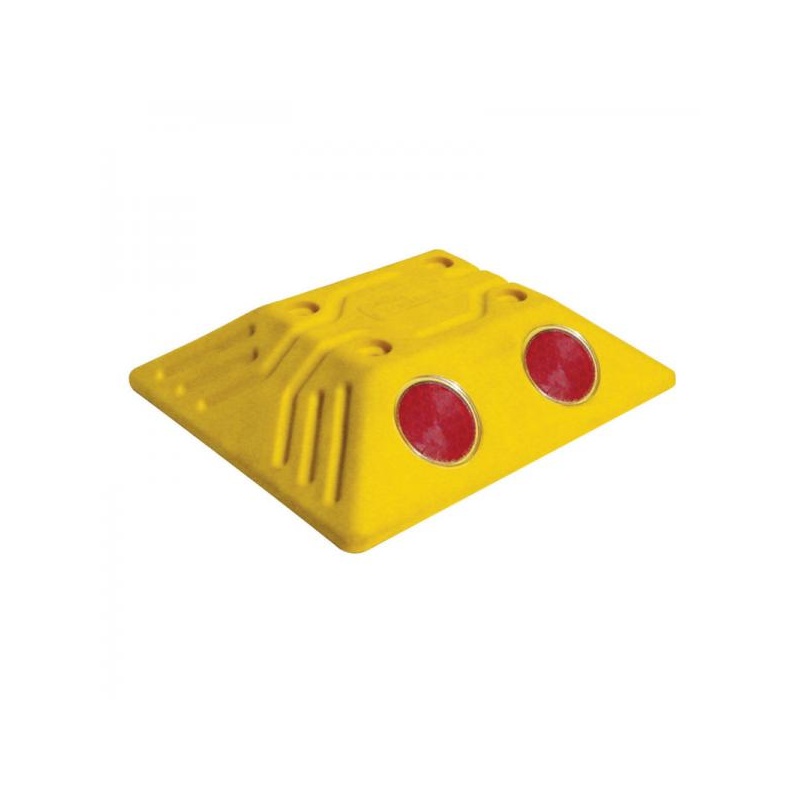

Roadstuds: durable, unbreakable, solid body and reflectors
– size: 105x105x20 mm
– weight: 0,12 kg
– material: ABS
– colour : yellow, white
– fixing to concrete with screw kit
– operating temperature range: -20°C-/+60°C
– high visibility 1+1 reflectors

Mark a route or boundary in a safe and clear manner.
In addition to visual separation of pedestrians, it also provides tactile feedback to road spikes.
Simplicity needs pavements to be functional and durable.
The right construction and materials make road studs extremely suitable for public spaces. This solution offers a flexible, fast and timeless solution with endless applications.

Dimensions: 50*60mm

Teens are always available with:
• Anchor rods (M12) for gluing into the pavement.
• Warranty 5 years

Material
• Corten steel 3 mm
or
• Stainless steel 316- 3 mm

Areas of use:
• Terraces
• Parking spaces
• Crosswalks
• Smoking areas
• Road markings

- made of glass
- diameter 100 mm
- height from the ground after installation: 14mm
-> 150J
- load capacity 60T
- EN 1463-1 & 2

Can be installed in both asphalt and concrete
For example:
double paving stones,
RWS tires,
ordinary plates etc.

- with solar battery NI-MH
- diameter 112 mm
- height from the ground after installation: 4mm
- driveable
- LEDs
- expected life of 8 years
- IP68
- recommended temperature range -20˚ > +85˚
- Charging capacity: 100% in 3 hours at 100 KLux
- Light output: 2,500 mcd

Installation: Drilling and installation, two-component adhesive.
Suitable for: asphalt, concrete, natural stones.

Glue/granule for installing plastic cover reflectors (so-called "cat's eyes").

Hot assembly, i.e. glue granules, is heated with a gas burner or previously in a boiler.
