S size Ladder

DATA:
Compatible with the following floor sizes: S, M, L, XL
The maximum height from the floorboard is 318 cm
Minimum height from the floorboard 160 cm
Height adjustable every 12.1 cm
Total height: 268, 280, 158, 292, 171, 304, 183, 317, 195, 207, 219, 232, 244, 256 cm
Structural material and finish of powder-coated structural steel
Handrail material and finish: Anodized aluminum (other colors can be ordered, ask for an offer)
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 19
Dimensions of steps: 120 x 30 cm
Slope and shadow: 30º / The shadow of the stairs is 173% of the height.
Height between steps (riser): 16cm
Step material: Non-slip galvanized steel (8 mm with internal perforations)
Maximum load per step: 200 kg
Maximum load capacity: 200 kg

DATA:
Compatible with the following floor sizes: S, M, L,
The maximum height from the floorboard is 282 cm
Minimum height from the floorboard 173 cm
Height adjustable every 12.1 cm
Total height: 195, 207, 219, 232, 244, 256, 268, 280, 171, 183 cm
Structural material and finish of powder-coated structural steel
Handrail material and finish: high density polyethylene (HDPE) black
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 11
Step dimensions: 53.6 x 32 cm
Height between steps (riser): 24.3 cm
Material of steps: structural steel painted with powder paint
Maximum load per step: 150 kg
Maximum load capacity: 150 kg

DATA:
Compatible with the following floor sizes: XL, L, M, S
The maximum height from the floorboard is 282 cm
Minimum height from the floorboard 160 cm
Height adjustable every 12.1 cm
Total height: 171, 183, 195, 207, 219, 232, 244, 256, 268, 280 cm
Structural material and finish of powder-coated structural steel
Handrail material and finish: Anodized aluminum (other colors can be ordered, ask for an offer)
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 14
Dimensions of steps: 100 x 30 cm
Slope and shadow: 36º / The shadow of the stairs is 138% of the height.
Height between steps (riser): 19cm
Step material: Non-slip galvanized steel (8 mm with internal perforations)
Maximum load per step: 200 kg
Maximum load capacity: 200 kg

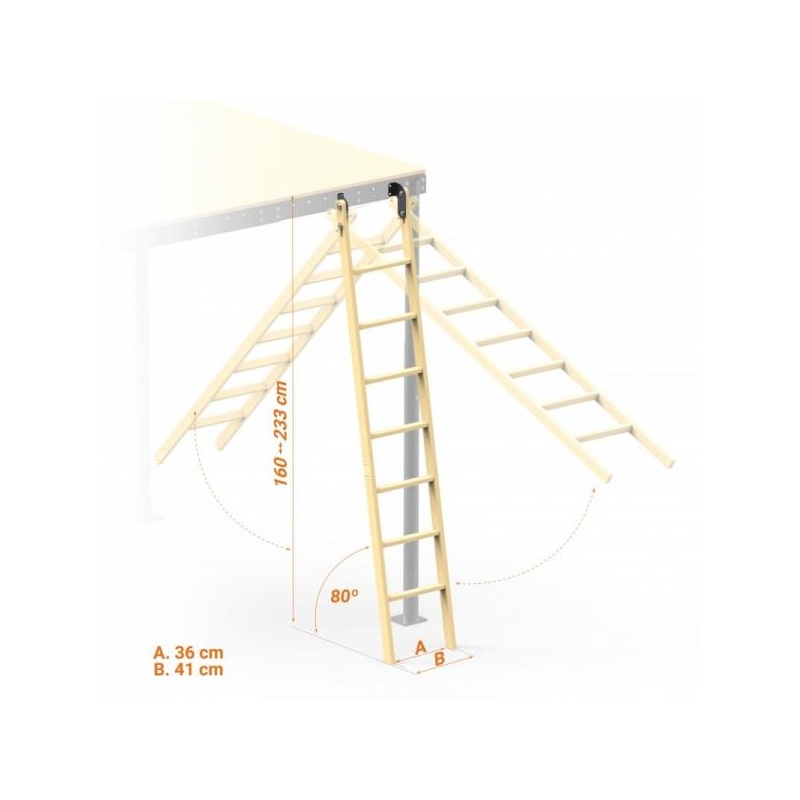

DATA:
Compatible with the following floor sizes: S
The maximum height from the floorboard is 233 cm
Minimum height from the floorboard 160 cm
Height adjustable every 12.1 cm
Total height: 158, 171, 183, 195, 207, 219, 232 cm
Structural material and finish of powder-coated structural steel
Handrail material and finish: Anodized aluminum (other colors can be ordered, ask for an offer)
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 14
Dimensions of steps: 120 x 30 cm
Slope and shadow: 36º / The shadow of the stairs is 173% of the height.
Height between steps (riser): 16cm
Step material: Non-slip galvanized steel (8 mm with internal perforations)
Maximum load per step: 200 kg
Maximum load capacity: 200 kg

DATA:
Can be adjusted with the following floor sizes: M, S
Maximum height from the floorboard: 233 cm
Minimum height from the floorboard: 173 cm
Height adjustable every 12.1 cm
Total height: 158, 171, 183, 195, 207, 219, 232 cm
Handrail material and finish: anodised aluminum
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 5 tread on the right and 6 on the left
Dimensions of steps: 59.3 x 22 x 8 cm
Slope and shadow: 62º / The shadow of the stairs is 51% of the height.
Height between steps (riser): 22 cm
Material of steps: European Radiata pine plywood 30 mm thick
Maximum load per step: 150 kg
Evenly distributed load: 150 kg

DATA:
Can be adjusted with the following floor sizes: XL, L, M, S
Maximum height from the floorboard: 381 cm
Minimum height from the floorboard: 173 cm
Height adjustable every 6.05 cm
Total height: 347, 219, 286, 353, 225, 292, 359, 232, 298, 365, 238, 304, 371, 244, 310, 377, 250, 317, 171, 256, 323, 183, 262, 329, 195, 268, 335, 207, 274, 341, 213, 280 cm
Structural material and finish of powder-coated structural steel
Material and finish of the posts: powder-coated steel (other colors can be ordered, ask for an offer)
Number of steps: 13
Dimensions of steps: 22.5 x 23 cm
Slope and shadow: 63º / The shadow of the stairs is 51% of the height.
Height between steps (riser): 20.5 cm
Step material: non-slip, galvanized steel (8 mm with internal perforations)
Maximum load per step: 150 kg
Evenly distributed load: 150 kg
