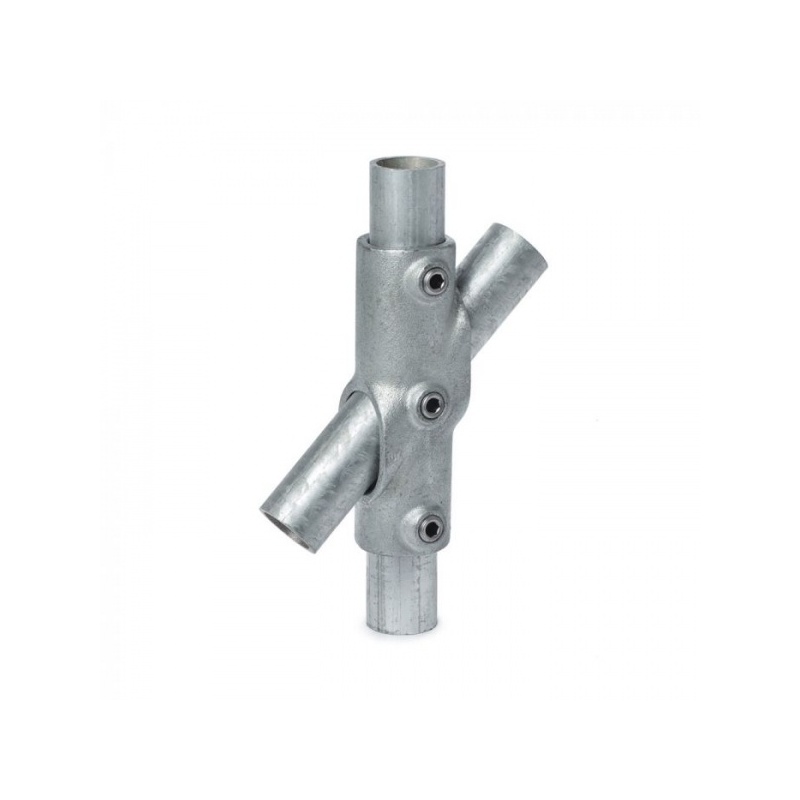

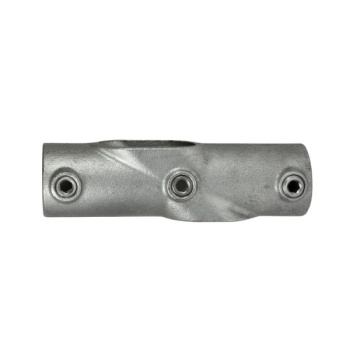

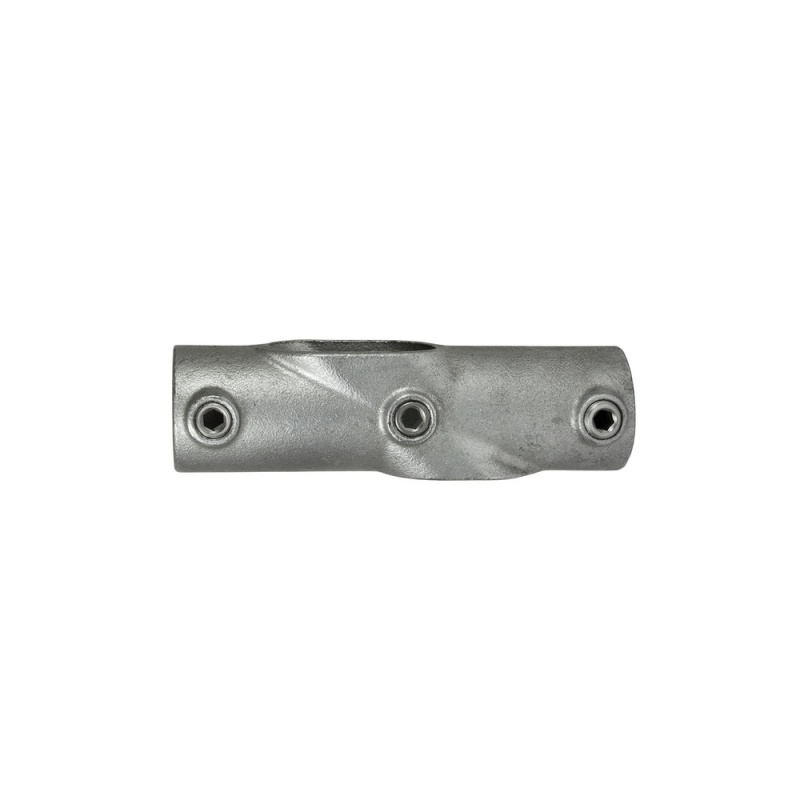

Type 23, Adjustable Two Socket Cross (30-45°) Ø42,4

Swivel Base Plate (Unisize). For fixing structures to wall or floor, usually used with Type 42.

Round tube D=42.4mm
wall thickness 2.65 mm
powder coated yellow
maximum profile length 3 m

Wall Flange. This clamp is used on structures where positional fixing is required. Do not use as a base flange to support guard railings or similar systems.

Side Outlet Tee. 3-direction clamp used to fix uprights with 3 horizontal tubes that are perpendicular to each other. Upright tube passes through the clamp.

Double Swivel. Swivel fitting for variable angle fixing for two sides of the post.

Eye Hinge. Female hinge fitting.
