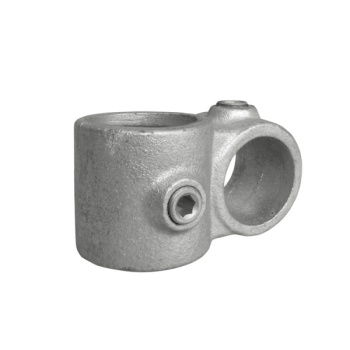

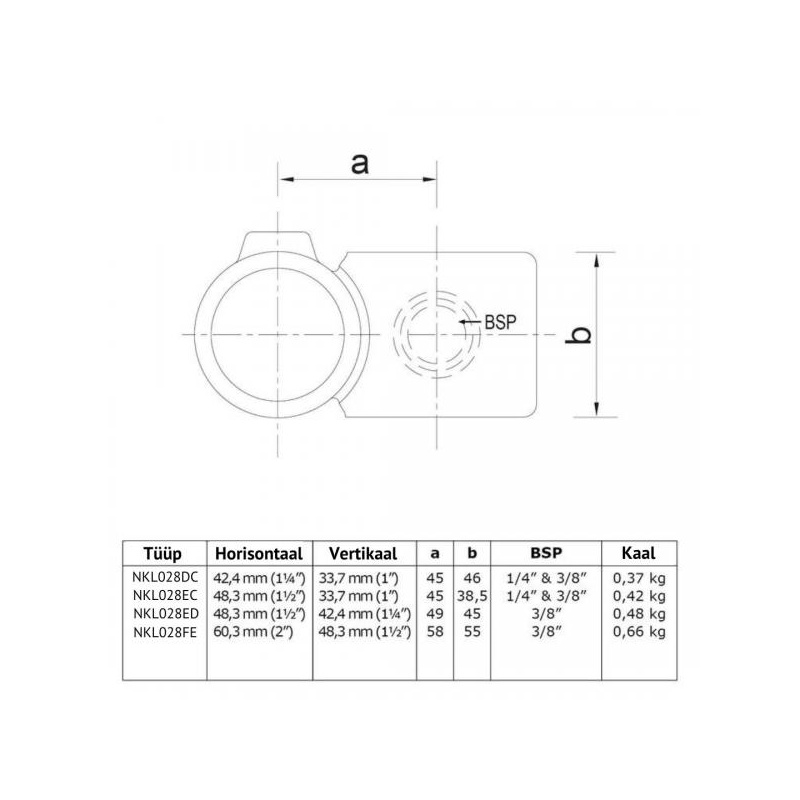

Type 28V, Reducing Crossover 90° Ø60,3 / Ø48,3

Round tube D=48.3mm
wall thickness 2.9 mm
powder coated yellow
maximum profile length 3 m

Double Swivel. Swivel fitting for variable angle fixing for two sides of the post.

Collar. Support fitting to increase the slip resistance of fittings that are under high loads.

Coat hook. Hook 90° narrow. Similar to tube coupling type 61, but better suited for making coat hangers and the like.

Internal Coupling. A streamlined flush joint in two tubes of the same size. Wall thickness must be 3.2 mm. Do not apply direct loads to this joint.

Adjustable for slopes from 11° to 29°, often used to join intermediate uprights to top rails and middle rails to end uprights. This Interclamp can be used where through tube (sloping in photo) has to be joined within the fitting. Type 253 may often be used as an alternative.
