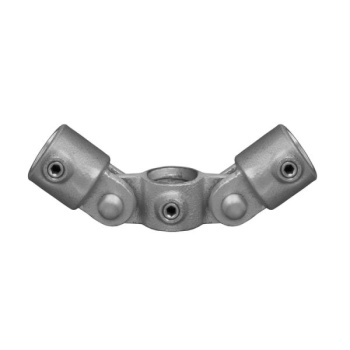

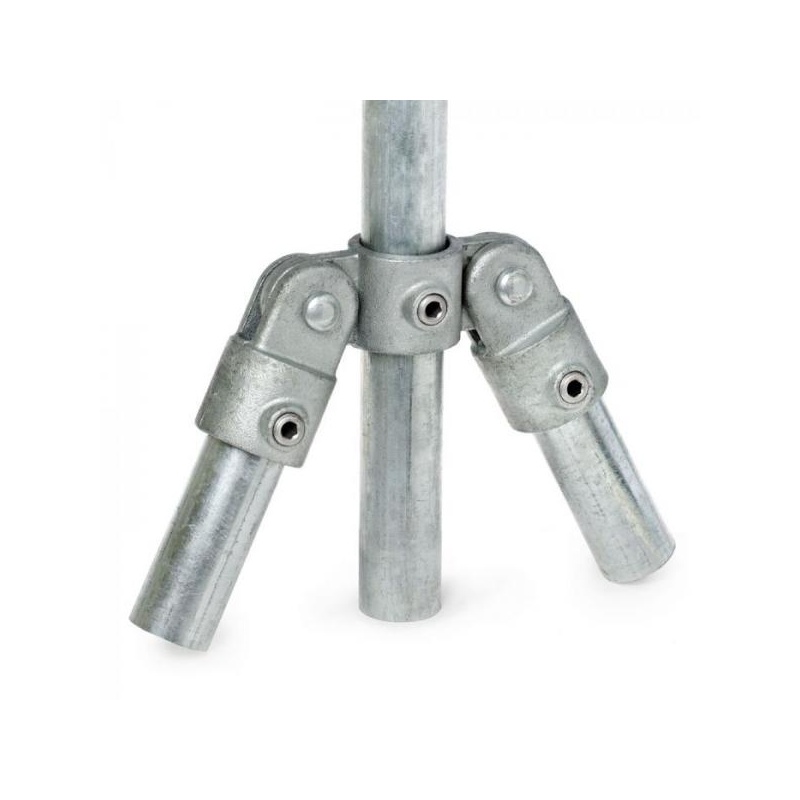

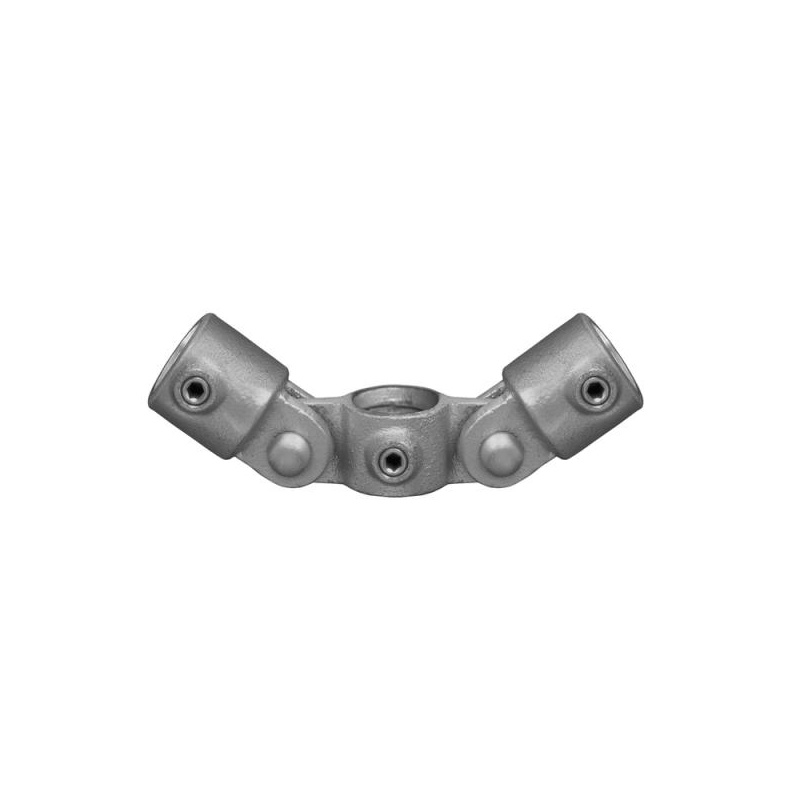

Type 46, Double Swivel Ø60,3

Short Tee. Provides a perpendicular connection between two tubes. Top fitting for straight and level railing uprights. This fitting cannot be used to join a horizontal tube within the fitting.

Corner With Trough Tube 90°. Often used on intermediate rail corners to match Type 18, tube passes through the clamp.

Female Single Socket. One part of swivel fitting, not generally used alone.

ATTENTION: The price is for one tube fitting. The figure shows a set of two fittings. Adjustable Swivel Tee. Always used in pairs to allow angle variation between 54 and 270 degrees. 608049B = 70° - 208° (min/max angle) 608049C = 71° - 217° (min/max angle) 608049D = 97° - 270° (min/max angle) 608049E = 54° - 215° (min/max angle)

Groundsocket. A ground socket fitting inside the concrete for fixing upright tube. Post is retained with a locking setscrew, allowing easy insertion and removal (if necessary).

Male Double Lug. Similar to Type 36 with two lugs on the same axis.
