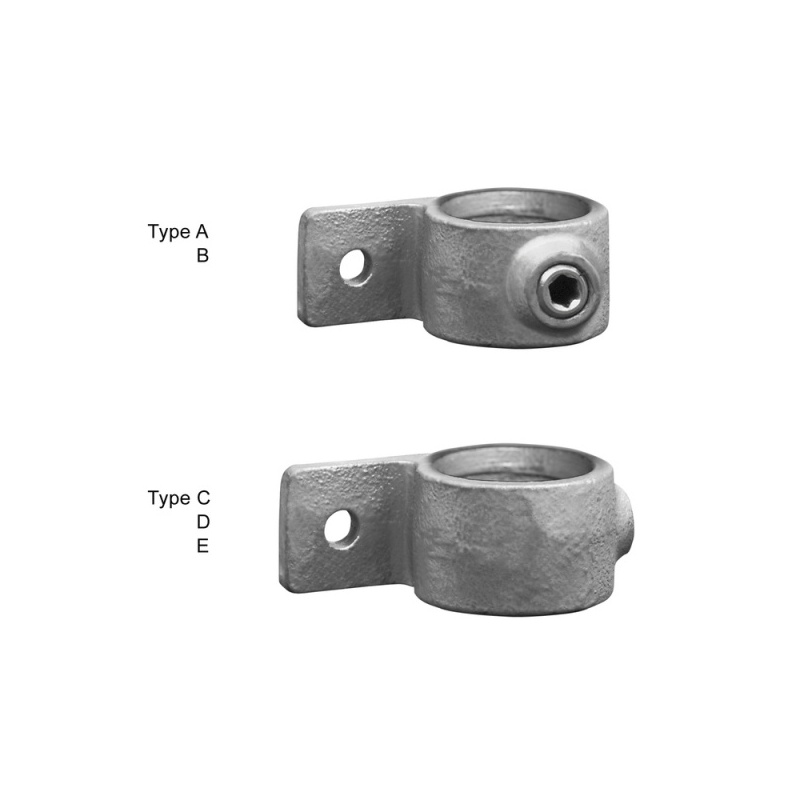

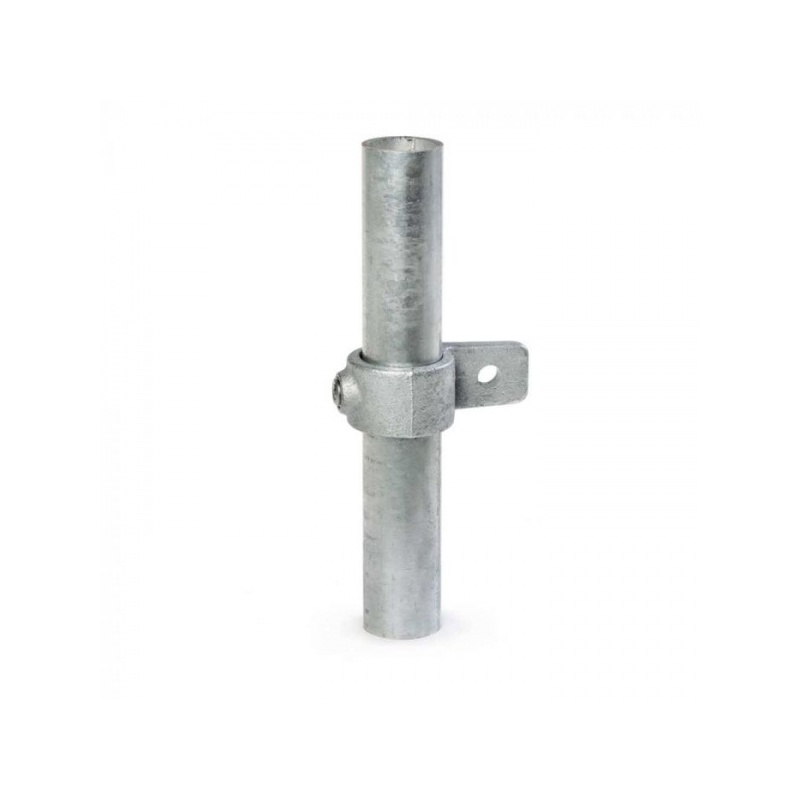

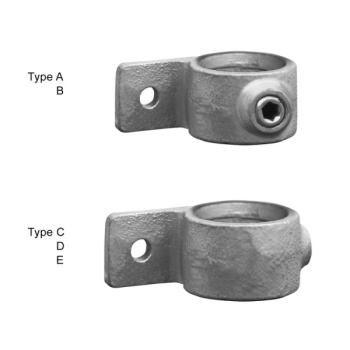

Type 55, Collar Plate Single Side Ø48,3

Add-On Corner With Trough Tube 90°. Openable corner connection (90°), with the vertical tube running through the clamp.

Base flange for sloping sites, adjustable from 11° to 29°. As the fixing holes in the base cannot be fixed in line with the applied load, it is only intended for light loads or structures which are sufficiently supported by virtue of their design.

Crossover 90°. Crossover clamp (90°). Used for long tube intersections with uprights where decreasing cutting cost and increasing strength of the system with continuity of the tube is desired.

Short T-clamp 45°. Connects horizontal and vertical pipes at a 45° angle. The clamp is made of hot-dip galvanized malleable iron, durable, corrosion-resistant and long-lasting. Meets TÜV requirements.

Butt joint for sloping sites, adjustable from 11° to 29°, often used to join intermediate uprights to top rails and middle rails to end uprights. This Interclamp cannot be used where through tube (sloping in photo) has to be joined within the fitting.

Elbow 90°. Elbow joint fitting used as an end fitting for the top rail with different tube dimensions Ø42,4 mm and 48,3mm
