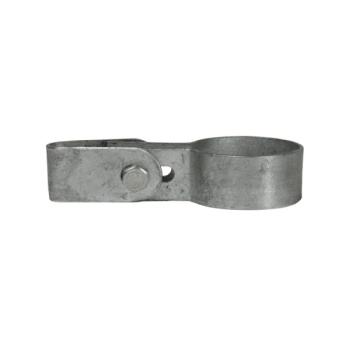

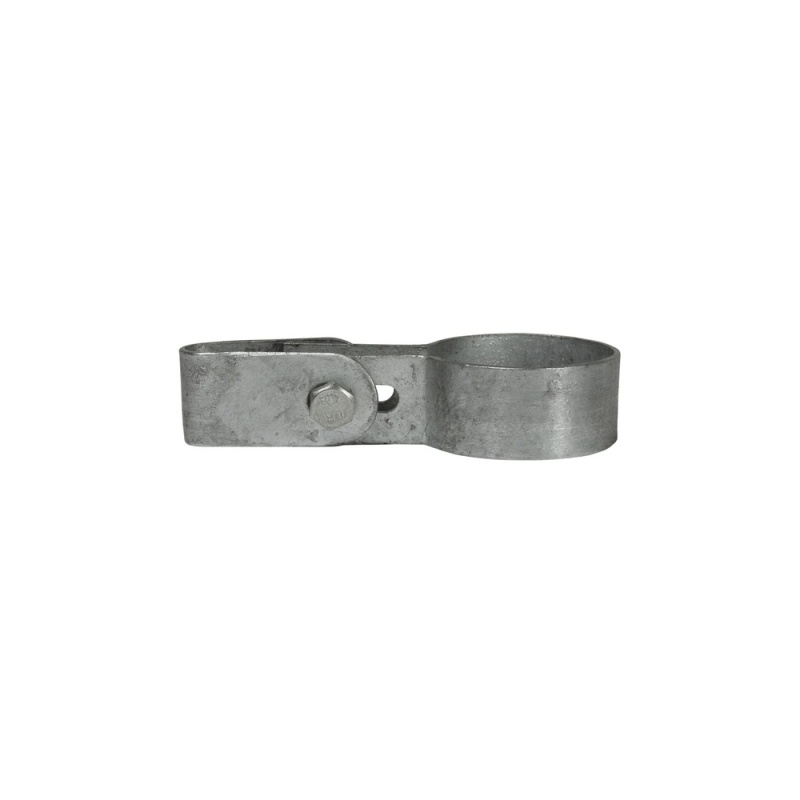

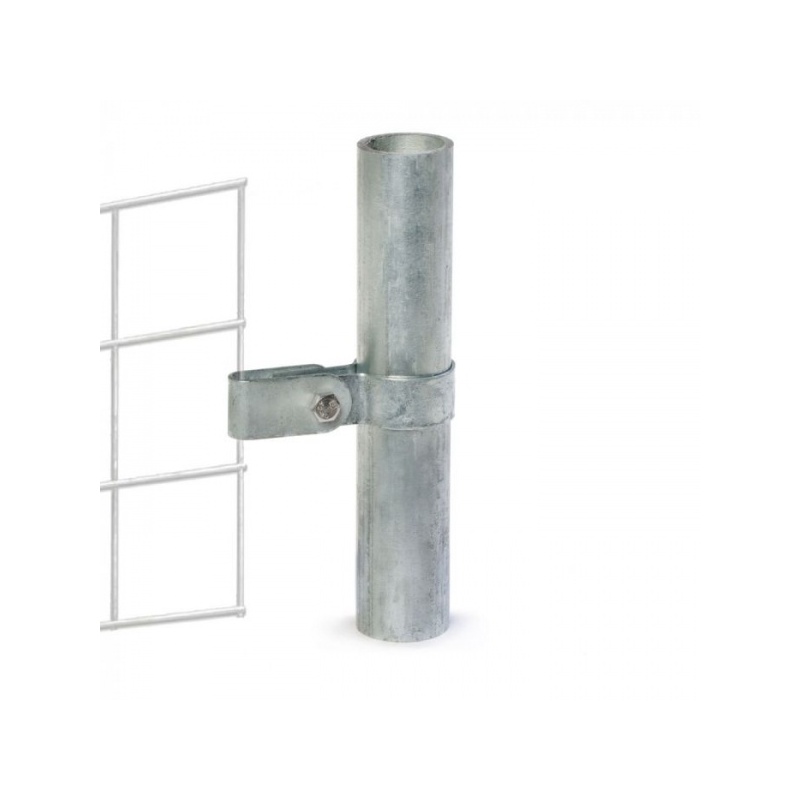

Type 70, Single Sided Panel Clip Ø60,3

Square base plate. Use this tubefitting for positioning constructions. Due to the shape of the base plate, it can be fixed nicely on a surface at a 90° angle. Do not use it as a base for supporting safety railings or similar contructions.

Railing Base Flange. Strong baseplate to support vertical post. Vertical wide rib with two setscrews increases the strength of the clamp. The fixing holes in the base flange should be in line with the applied load.

Corner With Trough Tube 90°. Often used on intermediate rail corners to match Type 18, tube passes through the clamp.

Side Outlet Tee. 3-direction clamp used to fix uprights with 3 horizontal tubes that are perpendicular to each other. Upright tube passes through the clamp.

Groundsocket. A ground socket fitting inside the concrete for fixing upright tube. Post is retained with a locking setscrew, allowing easy insertion and removal (if necessary).

Double Swivel. Swivel fitting for variable angle fixing for two sides of the post.
