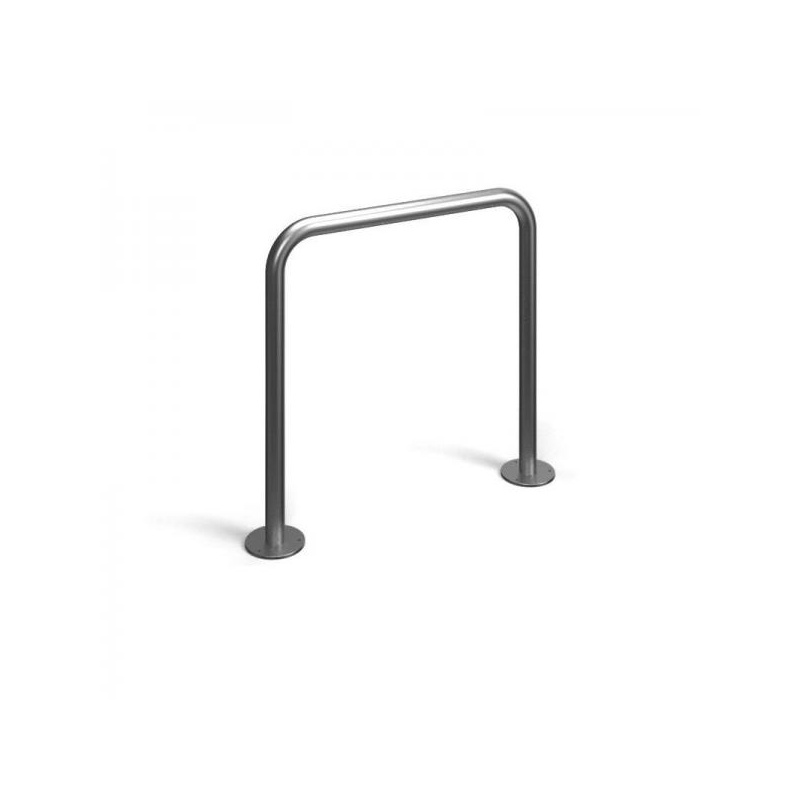

Wide Hoop Bike Rack

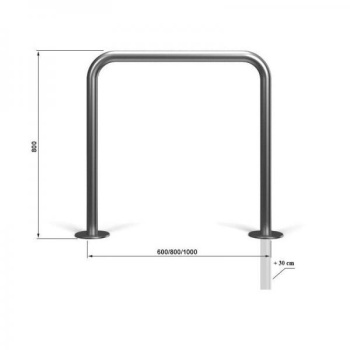

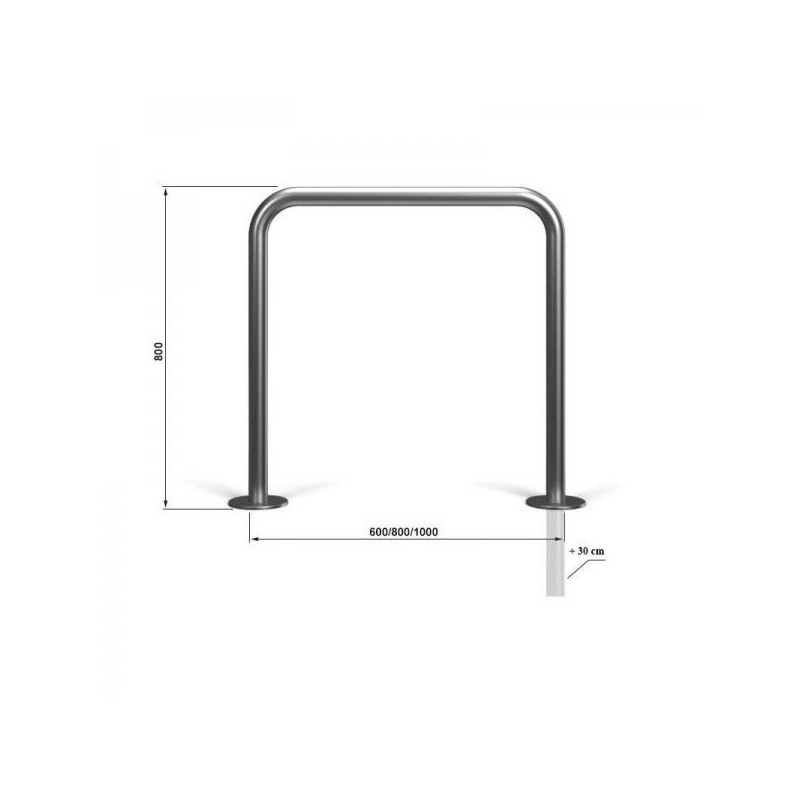

– dimensions: (L) 1000 x (H) 900mm
– total height 1200mm, part to be concreted 300mm
– profile diameter 90x50 mm
– material thickness: 3.5 mm
– material: hot-dip galvanized steel
– installing method: concreting into the soil
– weight: 15 kg
- place of use: as a bicycle rack, can also be used as a road barrier or fence in shopping centers, parking lots, parks

DIMENSIONS
height: 45 cm
width: 39 cm
length: 205 cm
parking spaces: 5
weigth: 115 kg

MATERIALS
bases: sandblasted concrete or painted concrete
parking spaces: varnished steel

INSTALLATION
The bike rack is installed by setting anchoring pipes in the concrete

COLOR CHOICE FOR THE BASE
sandblasted concrete: natural grey
painted concrete: grey, light graphite, graphite

wall-/ ground anchor
flat construction form,
14 mm thick hardened special steel shackle,
110x125x38 mm,
4 wall plugs included,
weatherproof,
anti-drilling ball
protection cover

hoop of steel tube Ø 48 x 2,5 mm
total width 500 mm, the total height of 1400 mm
casting in concrete
hot-dip galvanized

hoop of steel tube Ø 48 x 2,5 mm
total width 500 mm, the total height of 1400 mm
casting in concrete
hot-dip galvanized

Models: 6 spaces
Max. diameter handlebar support: ø 45 mm
Dimensions version with legs: 598 high x 1006 long x 245 mm deep
Structure: galvanised steel
System: automatic grip/release of steering column, eyelets for locking (padlock not included)
Finish: galvanised and painted in our colours
Installation: base plates for version with legs (not supplied)
