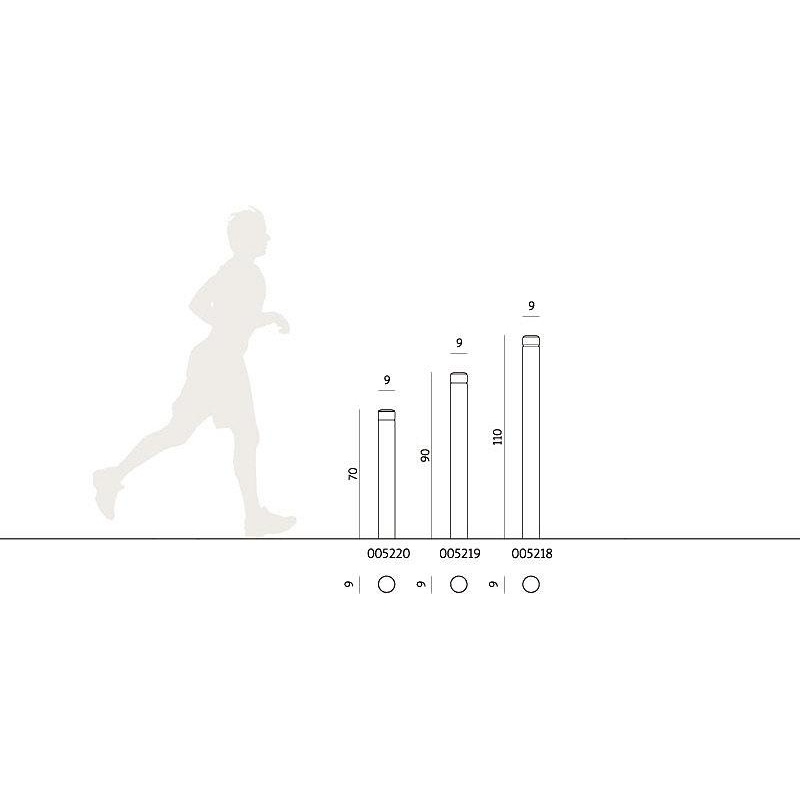

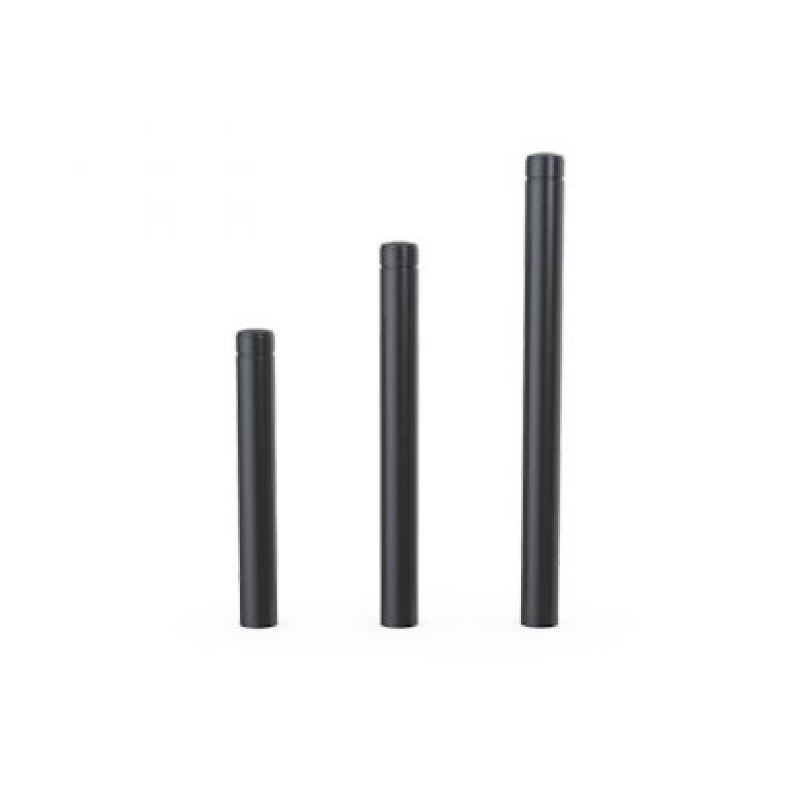

YORK Bollard 005219 Ø90mm H90cm

Ornamental bollard, Ø60mm

5 different bollards in selection:
1. Stationary, for casting in concrete, with ground anchor, total length: approx. 1300mm. 5kg
2. Stationary, to be fixed by plugs, with base plate 100 x 150mm. 4kg
3. Removable, with triangular locking mechanism, self-engaging lock, with hot-dip galvanized ground socket part-no. 460.40: approx. 400 mm below ground. 7kg
4. Foldable, with triangular locking mechanism, self-engaging lock, to be fixed by plugs, with base plate 100 x 150 mm. 6kg
5. Foldable, with triangular locking mechanism, self-engaging lock, for casting in concrete, with hot-dip galvanized ground socket part-no. 470.60, approx. 400 mm below ground

- approx. 950mm above ground
- hot-dip galvanized and coated colour RAL 7016

Ornamental bollard, Ø82mm

8 different bollards in selection:
1. Stationary, for casting in concrete, with ground anchor, total length: approx. 1300mm. 9,5kg
2. Stationary, to be fixed by plugs, with base plate 100 x 150mm. 8,5kg
3. Removable, with triangular locking mechanism, self-engaging lock, with hot-dip galvanized ground socket part-no. 470.10: approx. 500 mm below ground. 13kg
4. Removable, with profile cylinder lock (three keys incl.) self-engaging lock, with hot-dip galvanized ground socket part-no. 470.10: approx. 500 mm below ground. 13kg
5. Foldable, with triangular locking mechanism, self-engaging lock, to be fixed by plugs, with base plate 100 x 150 mm. 9kg
6. Foldable, with cylinder lock (three keys incl.) self-engaging lock, with base plate 100 x 150mm. 10kg
7. Foldable, with triangular locking mechanism, self-engaging lock, for casting in concrete, with hot-dip galvanized ground socket part-no. 470.60, approx. 400 mm below ground. 11kg
8. Foldable, with cylinder lock (three keys incl.) self-engaging lock for casting in concrete, with hot-dip galvanized ground socket part-no. 470.60, approx. 400 mm below ground. 12,5kg

- approx. 950mm above ground
- hot-dip galvanized and coated DB 703

Ornamental bollard, Ø82mm

8 different bollards in selection:
1. Stationary, for casting in concrete, with ground anchor, total length: approx. 1300mm. 9,5kg
2. Stationary, to be fixed by plugs, with base plate 100 x 150mm. 8,5kg
3. Removable, with triangular locking mechanism, self-engaging lock, with hot-dip galvanized ground socket part-no. 470.10: approx. 500 mm below ground. 13kg
4. Removable, with profile cylinder lock (three keys incl.) self-engaging lock, with hot-dip galvanized ground socket part-no. 470.10: approx. 500 mm below ground. 13kg
5. Foldable, with triangular locking mechanism, self-engaging lock, to be fixed by plugs, with base plate 100 x 150 mm. 9kg
6. Foldable, with cylinder lock (three keys incl.) self-engaging lock, with base plate 100 x 150mm. 10kg
7. Foldable, with triangular locking mechanism, self-engaging lock, for casting in concrete, with hot-dip galvanized ground socket part-no. 470.60, approx. 400 mm below ground. 11kg
8. Foldable, with cylinder lock (three keys incl.) self-engaging lock for casting in concrete, with hot-dip galvanized ground socket part-no. 470.60, approx. 400 mm below ground. 12,5kg

- approx. 900mm above ground
- hot-dip galvanized and coated RAL 9005

Ornamental bollard, Ø102mm

2 different bollards in selection:
1. Stationary, for casting in concrete, with ground anchor, total length: approx. 1300mm.
2. Removable, with triangular locking mechanism, self-engaging lock, with hot-dip galvanized ground socket part-no. 470.10: approx. 500 mm below ground.

- approx. 950mm above ground
- with globe head
- hot-dip galvanized and coated RAL 7016

DIMENSIONS
height: 100 cm
width: 10 cm
length: 10 cm
weigth: 11 kg

MATERIALS
varnished steel

INSTALLATION
The bollar is installed by setting anchoring pipes in the concrete

COLOR CHOICE: grey, dark grey, black

DIMENSIONS
height: 80 cm
diameter: 28 cm
weigth: 70 kg

MATERIALS
painted concrete

INSTALLATION
The bollard is installed by setting anchoring pipes in the concrete

COLOR CHOICE: grey, light graphite, graphite
